RI-12H12T-2B1000-12M23

Teknik Özellikler

Electrical Connection

Connector

Protection Class

IP67

Manufacturer Id

200007242

Housing Material

Die-cast zinc

Output Function

Push-Pull/HTL, with inverted signals

Eclsscode V514

27270502 -/- Encoder, incremental

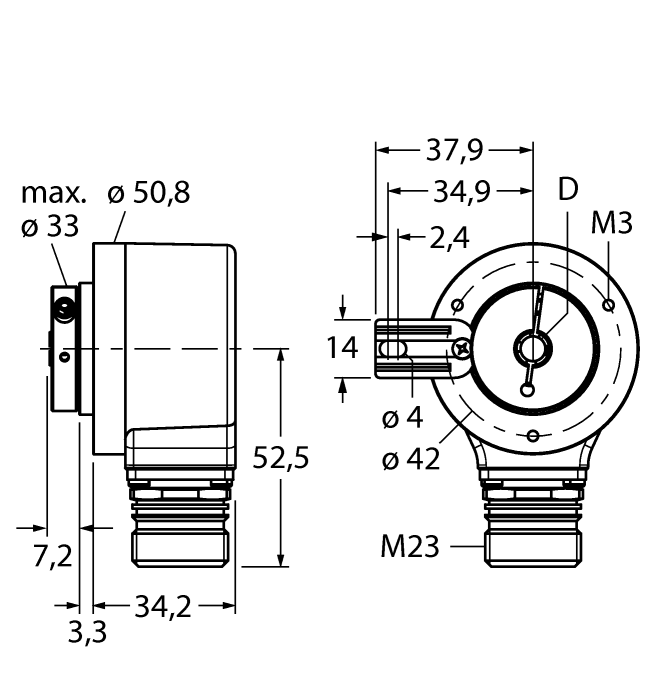

Flange Diameter

Ø  50.8 mm

Protection Class Shaft

IP67

Çıkış Tipi

Incremental

Shaft Type

Blind hole shaft

Operating Voltage

10…30 VDC

Ambient Temperature

-40…+85 °C

Shaft Diameter D Mm

12

Flange Type

Flange with mounting element

Resolution Incremental

1000  ppr

Encoder Line

Industrial-Line
