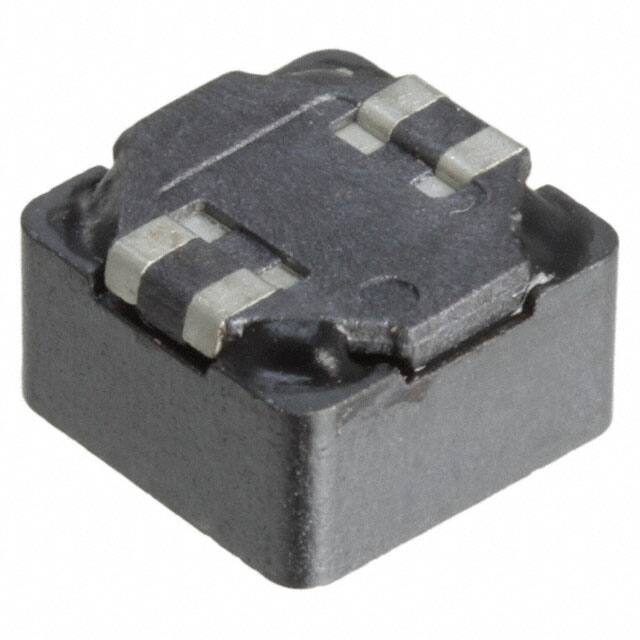

HM78D-755470MLFTR

Teknik Özellikler

Operating Temperaturemin

-40 °C

Rms Current Irms

1.15A

Kurşunsuz Kodu

Yes

Endüktans

47 μH

Inductance Connected In Series

198.6μH

Current Saturation Series

710mA

Dc Resistance Dcr Parallel

216mOhm

Shielded

YES

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount

Ihs Manufacturer

BI TECHNOLOGIES CORP

Inductance Parallel

47 μH

Shielding

Shielded

Parça Durumu

Discontinued

Genişlik

7.6962mm

RoHS

Compliant

Maks. Çalışma Sıcaklığı

85°C

Number Of Terminals

4

REACH Uyumluluk Kodu

compliant

Max Dc Current

1.41A

Shapesize Description

RECTANGULAR PACKAGE

Akım

573mA

Boyut / Ölçü

0.303Lx0.303W 7.70mmx7.70mm

Tolerans

±20%

Inductancenom L

47 µH

Dc Resistance

0.216 Ω

Fonksiyon Sayısı

1

Terminal Shape

ONE SURFACE

Inductance Tolerance

20%

Operating Temperaturemax

125 °C

Current Rating Parallel

1.15A

Uzunluk

7.6962mm

Test Frequency

0.1 MHz

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

HM78D

Min. Çalışma Sıcaklığı

-40°C

Inductor Type

GENERAL PURPOSE INDUCTOR

Current Rating Series

573mA

Terminal Placement

DUAL IN-LINE

Yükseklik

0.189 4.80mm
