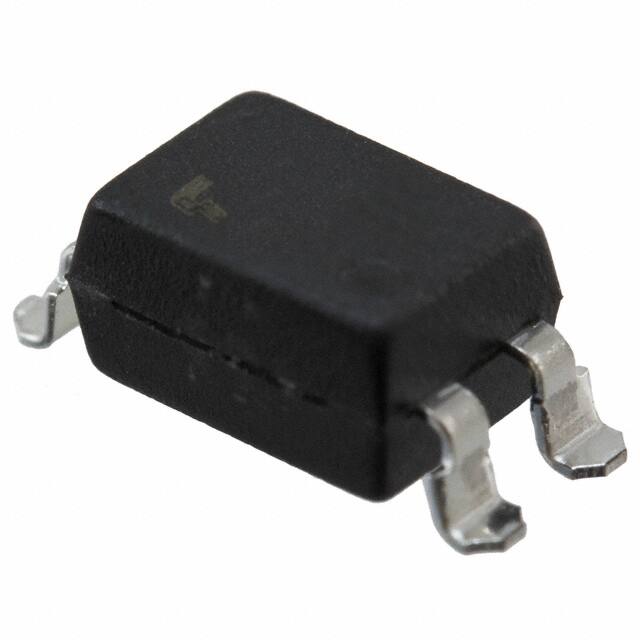

TLP781(GB-TP6,F)

Teknik Özellikler

Current Transfer Ratiomin

100% @ 5mA

Power Dissipation

250mW

Max Input Current

60mA

Collectoremitter Saturation Voltage

400mV

Reverse Breakdown Voltage

5V

Output Current Per Channel

50mA

Giriş Tipi

DC

Parça Durumu

Last Time Buy

Collector Emitter Voltage Vceo

80V

Forward Current

60mA

Montaj Tipi

Surface Mount

Max Power Dissipation

250mW

Kılıf / Paket

4-SMD, Gull Wing

Voltage Isolation

5000Vrms

RoHS Durumu

RoHS Compliant

Rise Fall Time Typ

2μs 3μs

Çalışma Sıcaklığı

-55°C~110°C

Max Collector Current

50mA

Number Of Channels

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Elements

1

Voltage Output Max

80V

Ambalaj

Cut Tape (CT)

Yayın Yılı

2009

Current Transfer Ratio Max

600% @ 5mA

Montaj

Surface Mount, Through Hole

Voltage Forward Vf Typ

1.15V

Pin Sayısı

4

Output Voltage

80V

Çıkış Tipi

Transistor

Turn On Turn Off Time Typ

3μs, 3μs
