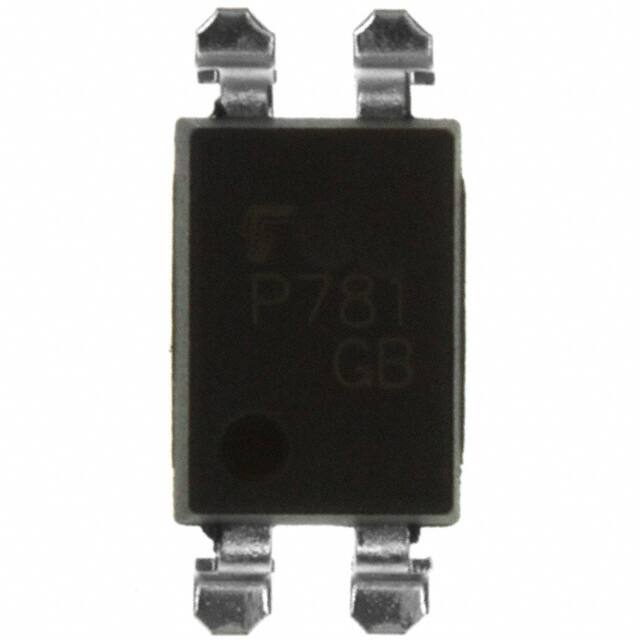

TLP781(GB-LF6,F)

Teknik Özellikler

Current Transfer Ratiomin

100% @ 5mA

Output Current Per Channel

50mA

Current Dc Forward If Max

60mA

Max Input Current

60mA

Collectoremitter Saturation Voltage

400mV

Collector Emitter Voltage Vceo

80V

Parça Durumu

Last Time Buy

Giriş Tipi

DC

Max Power Dissipation

250mW

Montaj Tipi

Surface Mount

Forward Current

10mA

Number Of Channels

1

Max Collector Current

50mA

Rise Fall Time Typ

2μs 3μs

Çalışma Sıcaklığı

-55°C~110°C

Kılıf / Paket

4-SMD, Gull Wing

Voltage Isolation

5000Vrms

RoHS Durumu

RoHS Compliant

Current Transfer Ratio Max

600% @ 5mA

Yayın Yılı

2009

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tube

Number Of Elements

1

Pin Sayısı

4

Voltage Forward Vf Typ

1.15V

Output Voltage

80V

Montaj

Surface Mount

Turn On Turn Off Time Typ

3μs, 3μs

Max Output Voltage

80V

Çıkış Tipi

Transistor
