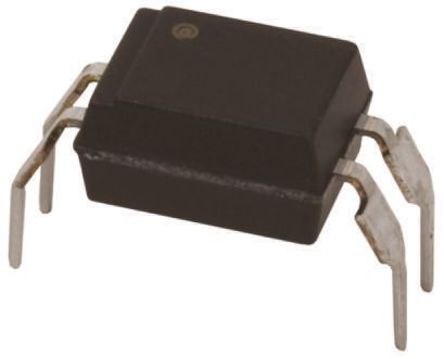

TLP781F(D4-GB,F)

Teknik Özellikler

Forward Current

25mA

Montaj Tipi

Through Hole

Max Power Dissipation

250mW

Input Current

16mA

Giriş Tipi

DC

Parça Durumu

Last Time Buy

Collector Emitter Voltage Vceo

80V

Collectoremitter Saturation Voltage

400mV

Max Input Current

60mA

Reverse Breakdown Voltage

5V

Current Dc Forward If Max

60mA

Fall Time Typ

3 μs

Current Transfer Ratiomin

100% @ 5mA

Kurşunsuz

Lead Free

Power Dissipation

250mW

Radyasyon Dayanımı

No

Çıkış Tipi

Transistor

Turn On Turn Off Time Typ

3μs, 3μs

Montaj

Through Hole

Rise Time

2μs

Output Voltage

80V

Voltage Forward Vf Typ

1.15V

Pin Sayısı

4

Reach Svhc

No SVHC

Number Of Elements

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2008

Current Transfer Ratio Max

600% @ 5mA

Voltage Isolation

5000Vrms

Kılıf / Paket

4-DIP (0.400, 10.16mm)

RoHS Durumu

RoHS Compliant

Rise Fall Time Typ

2μs 3μs

Çalışma Sıcaklığı

-55°C~110°C

Number Of Channels

1

Max Collector Current

50mA
