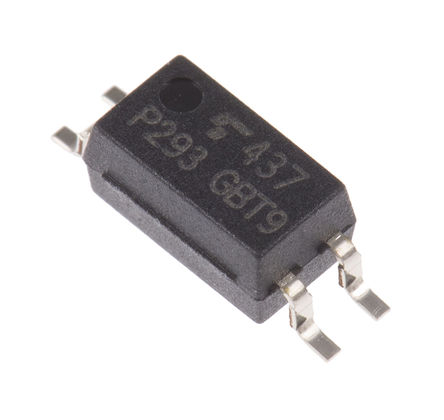

TLP293(E

Teknik Özellikler

Radyasyon Dayanımı

No

Max Power Dissipation

200mW

Collectoremitter Saturation Voltage

300mV

Kılıf / Paket

4-SOIC (0.179, 4.55mm Width)

Montaj Tipi

Surface Mount

Montaj

Surface Mount

Ambalaj

Bulk

Current Transfer Ratiomin

50% @ 5mA

Current Transfer Ratio Max

600% @ 5mA

Forward Currentmax

0.05A

Additional Feature

UL RECOGNIZED

Number Of Elements

1

Voltage Isolation

3750Vrms

Pin Sayısı

4

Usage Level

Military grade

Turn On Turn Off Time Typ

3μs, 3μs

Max Input Current

50mA

Giriş Tipi

DC

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

12 Weeks

Max Collector Current

50mA

Fall Time Typ

3 μs

Çıkış Tipi

Transistor

Rise Time

2μs

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2014

Çalışma Sıcaklığı

-55°C~125°C

Dark Currentmax

80nA

Number Of Channels

1

Parça Durumu

Active

Voltage Forward Vf Typ

1.25V

Collector Emitter Voltage Vceo

80V

Rise Fall Time Typ

2μs 3μs

Configuration

SINGLE
