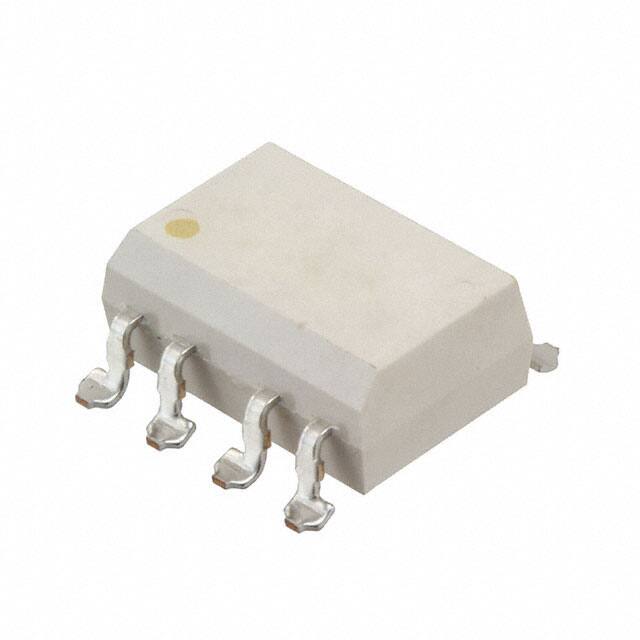

TLP2631TP1F

Teknik Özellikler

Voltage Forward Vf Typ

1.65V

Rise Fall Time Typ

30ns 30ns

Number Of Channels

2

Common Mode Transient Immunity Min

1kV/μs

Propagation Delay Tplh Tphl Max

75ns, 75ns

Parça Durumu

Last Time Buy

Output Current

16mA

Reverse Breakdown Voltage

5V

Çalışma Sıcaklığı

-40°C~85°C

Max Output Current

16mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2009

Forward Current

20mA

RoHS Durumu

RoHS Compliant

Power Dissipation

40mW

Besleme Gerilimi

4.5V~5.5V

Fabrika Tedarik Süresi

16 Weeks

Rise Time

30ns

Onstate Currentmax

0.016A

Çıkış Tipi

Open Collector, Schottky Clamped

Inputs Side1side2

2/0

Fall Time Typ

30 ns

Pin Sayısı

8

Direction

Unidirectional

Voltage Isolation

2500Vrms

Data Rate

10MBd

Giriş Tipi

DC

Propagation Delay

75 ns

Number Of Elements

2

Montaj Tipi

Surface Mount

Montaj

Surface Mount, Through Hole

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Output Current Per Channel

16mA

Additional Feature

OPEN COLLECTOR, UL RECOGNIZED

Optoelectronic Device Type

LOGIC IC OUTPUT OPTOCOUPLER

Max Power Dissipation

40mW

Radyasyon Dayanımı

No

Kılıf / Paket

8-SMD, Gull Wing

Turn On Delay Time

75 ns
