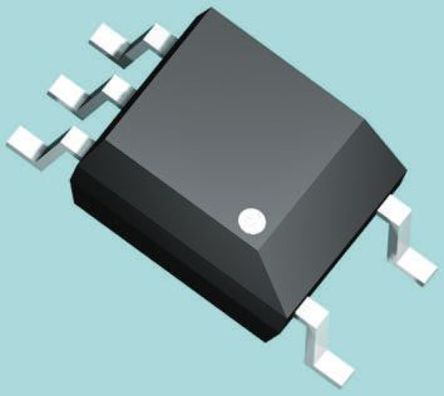

TLP137(TPL,F)

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount

Pin Sayısı

5

Rise Fall Time Typ

8μs 8μs

Optoelectronic Device Type

TRANSISTOR OUTPUT OPTOCOUPLER

Forward Current

50mA

Çalışma Sıcaklığı

-55°C~100°C

Vce Saturation Max

400mV

Giriş Tipi

DC

Voltage Isolation

3750Vrms

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Collector Current

50mA

Çıkış Tipi

Transistor with Base

Ambalaj

Tape & Reel (TR)

Current Transfer Ratiomin

100% @ 1mA

Max Input Current

50mA

Yayın Yılı

2007

Fall Time Typ

8 μs

Voltage Forward Vf Typ

1.15V

Collector Emitter Voltage Vceo

80V

Kılıf / Paket

6-SOIC (0.173, 4.40mm Width), 5 Leads

Radyasyon Dayanımı

No

Parça Durumu

Obsolete

Rise Time

8μs

Power Dissipation

200mW

Fabrika Tedarik Süresi

16 Weeks

Number Of Channels

1

Max Power Dissipation

200mW

Current Transfer Ratio Max

1200% @ 1mA

Montaj

Surface Mount

Turn On Turn Off Time Typ

10μs, 8μs

Reverse Breakdown Voltage

5V
