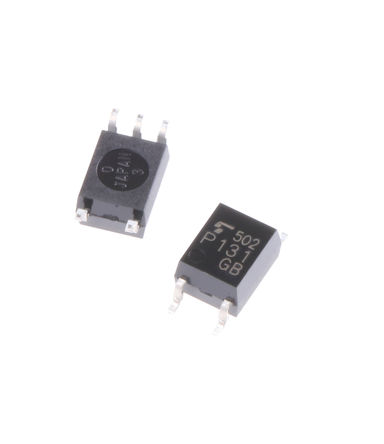

TLP131(GB-TPL,F)

Teknik Özellikler

Pin Sayısı

5

Montaj Tipi

Surface Mount

RoHS Durumu

RoHS Compliant

Forward Current

50mA

Rise Fall Time Typ

2μs 3μs

Voltage Isolation

3750Vrms

Giriş Tipi

DC

Çalışma Sıcaklığı

-55°C~100°C

Current Transfer Ratiomin

100% @ 5mA

Ambalaj

Tape & Reel (TR)

Çıkış Tipi

Transistor with Base

Max Collector Current

50mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Forward Vf Typ

1.15V

Fall Time Typ

3 μs

Yayın Yılı

2009

Max Input Current

50mA

Fabrika Tedarik Süresi

26 Weeks

Power Dissipation

200mW

Rise Time

2μs

Parça Durumu

Obsolete

Radyasyon Dayanımı

No

Kılıf / Paket

6-SOIC (0.173, 4.40mm Width), 5 Leads

Collector Emitter Voltage Vceo

80V

Collectoremitter Saturation Voltage

400mV

Number Of Channels

1

Turn On Turn Off Time Typ

3μs, 3μs

Reverse Breakdown Voltage

5V

Gerilim

5V

Number Of Elements

1

Montaj

Surface Mount

Current Transfer Ratio Max

600% @ 5mA

Max Power Dissipation

200mW
