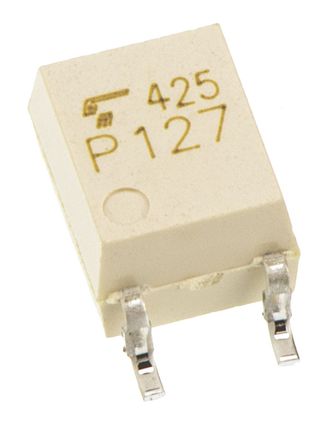

TLP127(U,F)

Teknik Özellikler

Radyasyon Dayanımı

No

Parça Durumu

Last Time Buy

Kurşunsuz

Lead Free

Configuration

SINGLE WITH BUILT-IN DIODE AND RESISTOR

Collector Emitter Voltage Vceo

300V

Kılıf / Paket

6-SMD (4 Leads), Gull Wing

Rise Time

40μs

Power Dissipation

200mW

Current Transfer Ratio

4000 %

Max Input Current

50mA

Output Voltage

300V

Fall Time Typ

15 μs

Voltage Forward Vf Typ

1.15V

Yayın Yılı

2007

Max Power Dissipation

200mW

Reverse Breakdown Voltage

5V

Turn On Turn Off Time Typ

50μs, 15μs

Montaj

Surface Mount

Number Of Elements

1

Yükseklik

2.5mm

Dark Currentmax

200nA

Reverse Voltage Dc

5V

Collectoremitter Saturation Voltage

1.2V

Additional Feature

UL RECOGNIZED

Input Current

25mA

Number Of Channels

1

Rise Fall Time Typ

40μs 15μs

Forward Current

50mA

Pin Sayısı

4

Reach Svhc

No SVHC

Uzunluk

3.6mm

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount

Max Collector Current

150mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Transfer Ratiomin

1000% @ 1mA

Çıkış Tipi

Darlington

Genişlik

4.4mm

Voltage Isolation

2500Vrms

Giriş Tipi

DC
