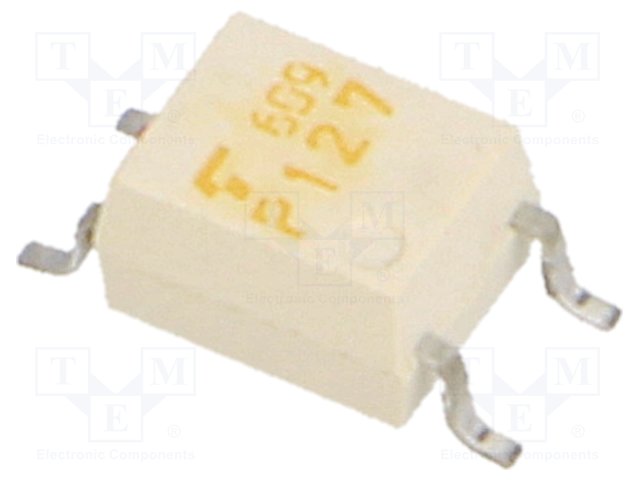

TLP127(TEE-TPL,F)

Teknik Özellikler

Montaj

Surface Mount

Number Of Elements

1

Turn On Turn Off Time Typ

50μs, 15μs

Reverse Breakdown Voltage

5V

Max Power Dissipation

200mW

Number Of Channels

1

Collectoremitter Saturation Voltage

1.2V

Additional Feature

UL RECOGNIZED

Dark Currentmax

200nA

Current Transfer Ratio

4000 %

Power Dissipation

200mW

Fabrika Tedarik Süresi

18 Weeks

Collector Emitter Voltage Vceo

300V

Kılıf / Paket

6-SMD (4 Leads), Gull Wing

Radyasyon Dayanımı

No

Parça Durumu

Last Time Buy

Configuration

SINGLE WITH BUILT-IN DIODE AND RESISTOR

Yayın Yılı

2014

Voltage Forward Vf Typ

1.15V

Max Input Current

50mA

Çıkış Tipi

Darlington

Ambalaj

Tape & Reel

Current Transfer Ratiomin

1000% @ 1mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Collector Current

150mA

Çalışma Sıcaklığı

-55°C~100°C

Giriş Tipi

DC

Voltage Isolation

2500Vrms

Forward Current

50mA

Rise Fall Time Typ

40μs 15μs

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount

Pin Sayısı

4
