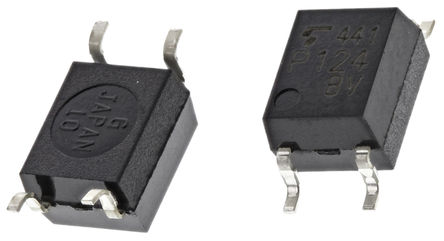

TLP124(BV,F)

Teknik Özellikler

Max Collector Current

50mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Transfer Ratiomin

200% @ 1mA

Contact Plating

Copper, Silver, Tin

Çıkış Tipi

Transistor

Giriş Tipi

DC

Voltage Isolation

3750Vrms

Çalışma Sıcaklığı

-55°C~100°C

Rise Fall Time Typ

8μs 8μs

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Forward Current

50mA

Pin Sayısı

4

Montaj Tipi

Surface Mount

RoHS Durumu

RoHS Compliant

Current Transfer Ratio Max

1200% @ 1mA

Max Power Dissipation

200mW

Turn On Turn Off Time Typ

10μs, 8μs

Reverse Breakdown Voltage

5V

Montaj

Surface Mount

Number Of Elements

1

Collectoremitter Saturation Voltage

400mV

Additional Feature

UL RECOGNIZED

Number Of Channels

1

Radyasyon Dayanımı

No

Parça Durumu

Obsolete

Configuration

SINGLE

Collector Emitter Voltage Vceo

80V

Kılıf / Paket

6-SMD (4 Leads), Gull Wing

Rise Time

8μs

Power Dissipation

200mW

Max Input Current

50mA

JESD-609 Kodu

e4

Fall Time Typ

8 μs

Voltage Forward Vf Typ

1.15V

Yayın Yılı

2009
