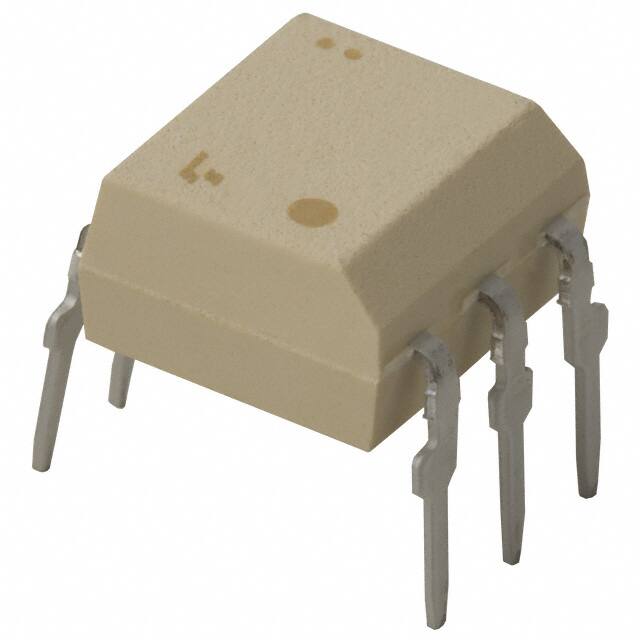

4N25(SHORT,F)

Teknik Özellikler

Kurşunsuz

Lead Free

Pin Sayısı

6

Collector Emitter Voltage Vceo

30V

RoHS Durumu

RoHS Compliant

Kılıf / Paket

6-DIP (0.300, 7.62mm)

Forward Current

80mA

Collectoremitter Saturation Voltage

500mV

Voltage Forward Vf Typ

1.15V

Max Output Voltage

30V

Max Collector Current

100mA

Montaj Tipi

Through Hole

Temel Parça No

4N25

Contact Plating

Gold, Tin

Power Dissipation

250mW

Number Of Elements

1

Rise Time

2μs

Max Power Dissipation

250mW

Output Voltage

70V

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~100°C

Current Transfer Ratiomin

20% @ 10mA

Current Transfer Ratio

100 %

Rise Fall Time Typ

2μs 200μs

Çıkış Tipi

Transistor with Base

Montaj

Through Hole

Giriş Tipi

DC

Output Current Per Channel

100mA

Voltage Isolation

2500Vrms

Parça Durumu

Last Time Buy

Radyasyon Dayanımı

No

Reverse Breakdown Voltage

3V

Max Input Current

80mA

Reverse Voltage Dc

3V
