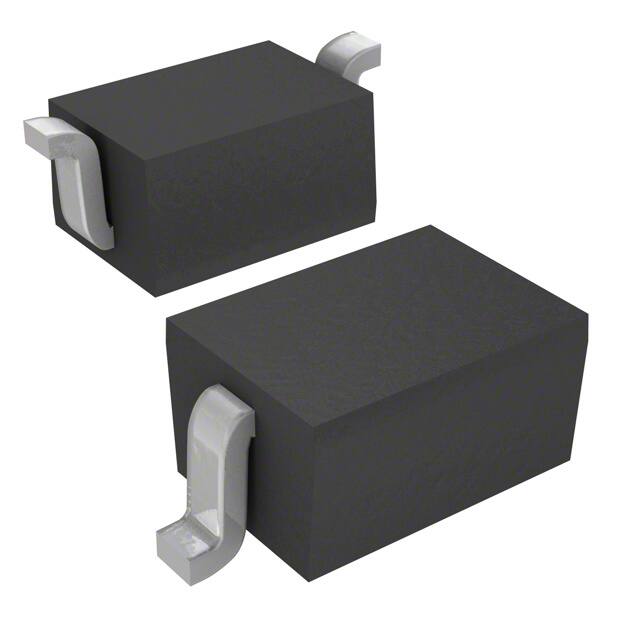

1SS352,H3F

Teknik Özellikler

Element Configuration

Single

Nem Hassasiyeti (MSL)

1 (Unlimited)

Forward Current

100mA

Capacitance Vr F

3pF @ 0V 1MHz

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Average Rectified Current

100mA

Kılıf / Paket

SC-76A

Max Power Dissipation

200mW

Parça Durumu

Active

Operating Temperature Junction

125°C Max

Yayın Yılı

2015

Max Reverse Voltage Dc

80V

Min. Çalışma Sıcaklığı

-55°C

Temel Parça No

1SS352

Peak Nonrepetitive Surge Current

1A

Max Surge Current

1A

Montaj

Surface Mount

Speed

Small Signal =< 200mA (Io), Any Speed

Montaj Tipi

Surface Mount

Current Reverse Leakage Vr

500nA @ 80V

Voltage Forward Vf Max If

1.2V @ 100mA

Maks. Çalışma Sıcaklığı

125°C

Reverse Recovery Time

4 ns

Ambalaj

Cut Tape (CT)

Max Repetitive Reverse Voltage Vrrm

85V

Fabrika Tedarik Süresi

12 Weeks

Diode Type

Standard
