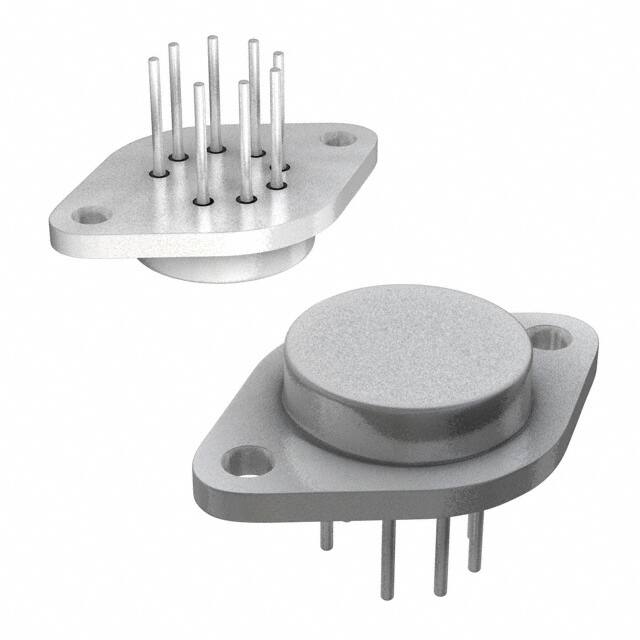

OPA2541BM

Teknik Özellikler

Frequency Compensation

YES

Terminal Pozisyonu

BOTTOM

ECCN Kodu

EAR99

Common Mode Rejection Ratio

95 dB

Besleme Gerilimi

35V

Montaj Tipi

Through Hole

Voltage Supply Singledual

20V~80V ±10V~40V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Bias Currentmax Iib25c

0.00005μA

Ambalaj

Tube

Operating Supply Current

40mA

Terminal Adımı

6.35mm

Gain Bandwidth Product

1.6MHz

Power Supplies

+-35V

Current Input Bias

15pA

Çalışma Sıcaklığı

-25°C~85°C

Micropower

NO

Kılıf / Paket

TO-3-8

Output Current Per Channel

7A

Number Of Circuits

2

Genişlik

25.4mm

Slew Rate

8V/μs

Programmable Power

NO

Terminal Sayısı

8

Input Offset Currentmax Iio

0.00003μA

Amplifier Type

Power

Kurşunsuz Kodu

yes

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Yükseklik

7.62mm

Neg Supply Voltagenom Vsup

-35V

Average Bias Currentmax Iib

0.00005μA

Radyasyon Dayanımı

No

Kurşunsuz

Contains Lead

Montaj

Through Hole

Supply Voltage Limitmax

40V

Architecture

VOLTAGE-FEEDBACK

Neg Supply Voltagemax Vsup

-40V

Thickness

7.11mm

Lowbias

YES

Unity Gain Bwnom

1600 kHz
