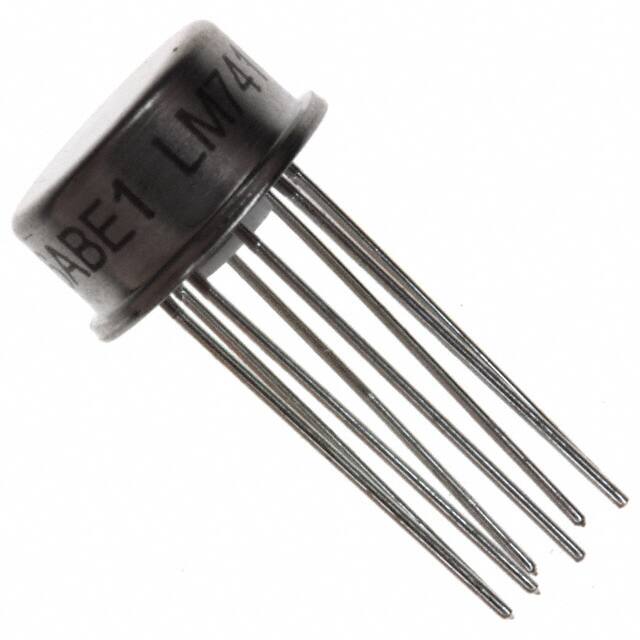

LM741CH

Teknik Özellikler

Output Current

25mA

Yükseklik

5.72mm

Ambalaj

Bulk

Lowoffset

NO

ECCN Kodu

EAR99

Fonksiyon Sayısı

1

Thickness

4.4mm

Besleme Gerilimi

15V

Amplifier Type

General Purpose

Çalışma Sıcaklığı

0°C~70°C

Power Dissipation

500mW

Voltage Input Offset

2mV

Operating Supply Voltage

22V

Unity Gain Bwnom

437 kHz

Input Offset Voltage Vos

6mV

Pin Sayısı

8

Radyasyon Dayanımı

No

Slew Rate

0.5V/μs

Number Of Channels

1

Bias Currentmax Iib25c

0.5μA

Voltage Gain

106.02dB

Voltage Supply Singledual

10V~36V ±5V~18V

Max Power Dissipation

500mW

Neg Supply Voltagenom Vsup

-15V

Terminal Formu

WIRE

Power Supply Rejection Ratio Psrr

77dB

Lowbias

NO

Common Mode Rejection Ratio

70 dB

Temel Parça No

LM741

Kurşunsuz

Contains Lead

Weight

4.535924g

Fabrika Tedarik Süresi

6 Weeks

Reach Svhc

No SVHC

Operating Supply Current

1.7mA

Kılıf / Paket

TO-99-8 Metal Can

Max Supply Current

2.8mA

Frequency Compensation

YES

Uzunluk

9.08mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

Non-RoHS Compliant
