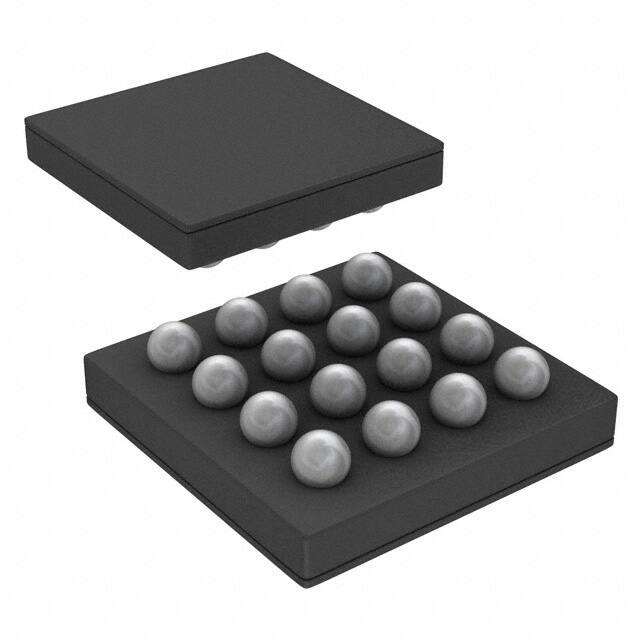

LM3280TL-275/NOPB

Teknik Özellikler

Control Mode

CURRENT-MODE

Voltage Output2

2.85V

Input Voltagenom

3.6V

Terminal Pozisyonu

BOTTOM

Min Input Voltage

2.7V

ECCN Kodu

EAR99

Current Output2

20mA

Montaj Tipi

Surface Mount

Kılıf / Paket

16-WFBGA

Control Technique

PULSE WIDTH MODULATION

Besleme Gerilimi

2.7V~5.5V

Voltagecurrent Output1

0.8V~3.6V 300mA

Parça Durumu

Active

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Genişlik

2.3mm

Terminal Adımı

0.5mm

Voltagecurrent Output3

2.75V 20mA

Temel Parça No

LM3280

Current Output1

300mA

Current Output3

20mA

Output Current

300mA

Topology

Step-Down (Buck) (1), Linear (LDO) (3)

Supply Currentmax Isup

0.003mA

Wsequencer

No

Pin Sayısı

16

Analog Ic Other Type

SWITCHING REGULATOR

Terminal Sayısı

16

Uzunluk

2.5mm

Voltagecurrent Output2

2.85V 20mA

Kurşunsuz

Lead Free

Power Supplies

3/5V

Yükseklik

675μm

RoHS Durumu

ROHS3 Compliant

Frequency Switching

2MHz

Additional Feature

ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 3.6V, ALSO OPERATES AS LDO REGULATOR

Kurşunsuz Kodu

yes

Terminal Formu

BALL

Number Of Outputs

4

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Montaj

Surface Mount
