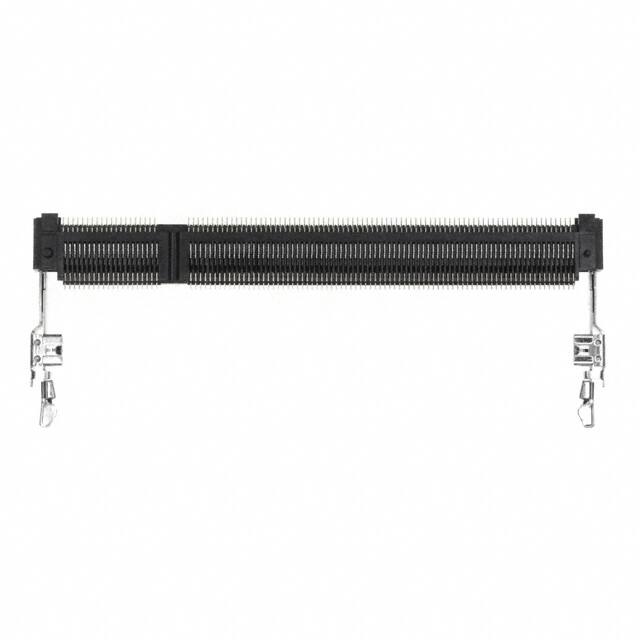

1565917-4

Teknik Özellikler

Kurşunsuz

Lead Free

Filter Feature

NO

Lead Pitch

600μm

Contact Finish

Gold

Housing Color

Black

HTS Kodu

8536.69.40.40

Plating Thickness

FLASH inch

Ul Flammability Code

94V-0

Connector Type

Socket

Total Number Of Contacts

200

Ambalaj

Tape & Reel (TR)

Flammability Rating

UL94 V-0

Özellikler

Board Guide, Latches

Elv

Compliant

Fabrika Tedarik Süresi

25 Weeks

RoHS Durumu

RoHS Compliant

Additional Feature

LATCHED

Reference Standard

UL

Orientation

Right Angle

Pozisyon Sayısı

200

Mixed Contacts

NO

Contact Materials

Copper

ECCN Kodu

EAR99

Sealable

No

Housing Material

Thermoplastic

Connector Style

SODIMM

Reach Svhc

Unknown

Yayın Yılı

2007

Nominal Gerilim

1.8V

Number Of Conductors

ONE

Montaj

Surface Mount

Contact Current Rating

500mA

Memory Types

DDR2 SDRAM

Parça Durumu

Active

Circuit Applications

Power

Montaj Tipi

Surface Mount, Right Angle

Mounting Feature

Normal, Standard - Top

Terminal

Solder

Stack Height

5.2mm

Sıra Sayısı

2
