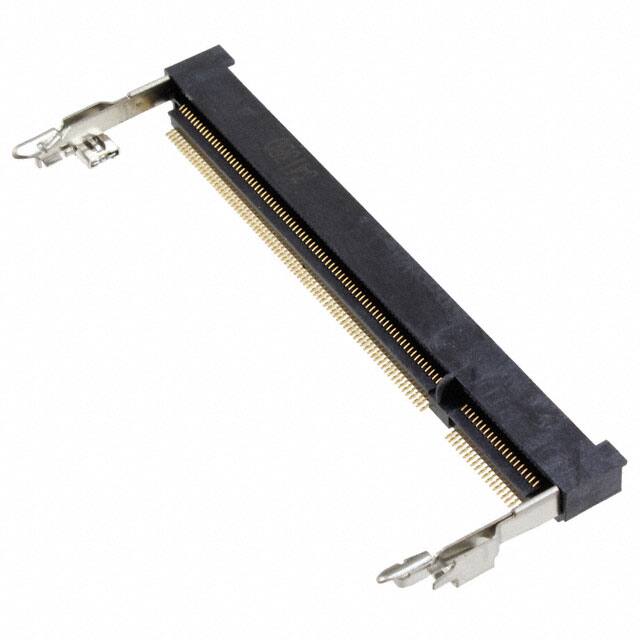

1473005-4

Teknik Özellikler

Samacsys Description

DIMM Connectors DDR2 SODIMM 200P STANDARD HOUSING

Contact Gender

FEMALE

Termination Type

SURFACE MOUNT

Insulation Resistance

250MOhm

Üretici Parça No

1473005-4

Reach Svhc

No SVHC

Mil Conformance

NO

Contact Current Rating

500mA

Memory Types

DDR2 SDRAM

Ul Flammability Code

94V-0

Pcb Contact Pattern

RECTANGULAR

Flammability Rating

UL94 V-0

Parça Durumu

Active

Operating Temperaturemin

-55 °C

Birim Ağırlık

0.162154 oz

Board Mounting Option

PEG

Pitch

600μm

Grid Size

Not Required

Din Conformance

NO

Rated Current Signal

1A

Radyasyon Dayanımı

No

Bodyshell Style

SOCKET

Voltage Rating

1.8V

Uzunluk

71.5mm

Insulator Material

THERMOPLASTIC

Operating Temp Range

-55C to 85C

Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Contact Style

BELLOWED TYPE

Termination Method

Solder

Operating Temperaturemax

105 °C

Product Depth Mm

26(mm)

Body Depth

1.789 inch

Montaj

Surface Mount

Brand Name

AMP

Basehousing Material

Thermoplastic

Insulation Materials

Thermoplastic

Pitch Mm

0.6(mm)

Tip

SO DIMM Socket

Orientation

Right Angle

Sıra Sayısı

2
