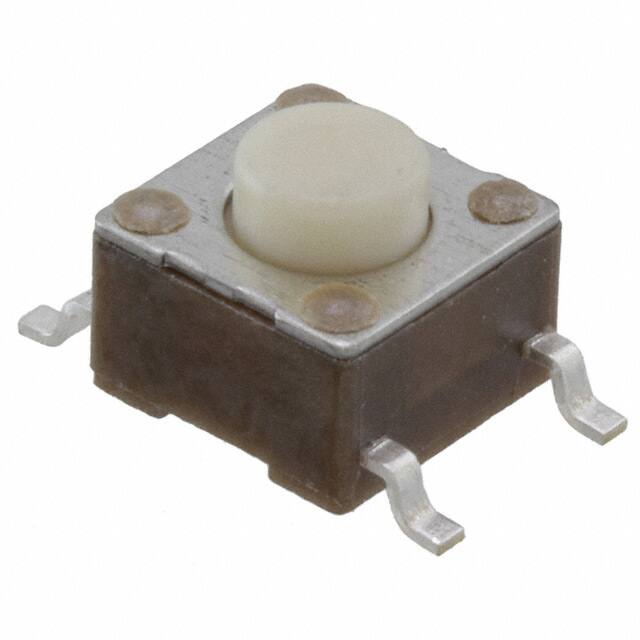

1571563-4

Teknik Özellikler

Contact Configuration

SPST

Voltage Rating

24V dc

Genişlik

6mm

Minimum Operating Temperature

-35°C

Actuator Orientation

Top Actuated

Parça Durumu

Active

Contact Plating

Silver

RoHS

Compliant

Temel Ürün No

1571563

Contact Resistance

100mOhm

Actuator

Round

Outline

6.00mm x 6.00mm

Operating Temperature Range

-35 → +85°C

Ground Terminal

No

Orientation

Straight

RoHS Durumu

RoHS Compliant

Paket

Tape & Reel (TR);Cut Tape (CT);

Electricallife

100000 Cycle(s)

Illumination Type

Illuminated, Non-Illuminated

Min. Çalışma Sıcaklığı

-35 °C

Yayın Yılı

2007

Pozisyon Sayısı

2

Max Voltage Rating Dc

24V

Product Length Mm

6(mm)

Actuator Type

Standard

Ambalaj

Tape & Reel (TR)

Mounting

Surface Mount

Illuminated

Non-Illuminated

Packing Method

TAPE AND REEL

Radyasyon Dayanımı

No

Actuator Height Off Pcb Vertical

5.00mm

Life Cycles

100000 cycles

Actuator Style

Round Button

Ürün Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rating Vdc

24(V)

Seri

FSMJSMA

Kurşunsuz

Lead Free

Body Orientation

Straight

Contact Rating Voltage

0.05A @ 24VDC
