225389-2

Teknik Özellikler

Cable Group

RG-213

Kurşunsuz

Not Applicable

Contact Materials

Copper

ECCN Kodu

EAR99

Mating Cycles

500

Fabrika Tedarik Süresi

16 Weeks

Yayın Yılı

2005

Empedans

50Ohm

Parça Durumu

Active

Elv

Compliant

Insertion Loss

0.3 dB

Frekans

11GHz

Iec Conformance

NO

Din Conformance

NO

Montaj Tipi

Free Hanging (In-Line), Right Angle

Seri

Coaxicon

Montaj

Cable

Connector Type

Plug, Male Pin

Housing Color

Silver

Center Contact Plating

Gold

Polarity

Standard

Contact Resistance

3mOhm

Number Of Ports

1

Total Number Of Contacts

1

Contact Termination

Crimp

Option

GENERAL PURPOSE

Kurşunsuz Kodu

no

Ambalaj

Bulk

Ingress Protection

Weatherproof

Dielectric Material

Polytetrafluoroethylene (PTFE)

Gender

Male

RoHS Durumu

Non-RoHS Compliant

Nominal Gerilim

1000V

Insulation Resistance

5GOhm

Connector Style

N Type

Orientation

Right Angle

Uzunluk

62.31mm

Insulation Materials

TEFLON

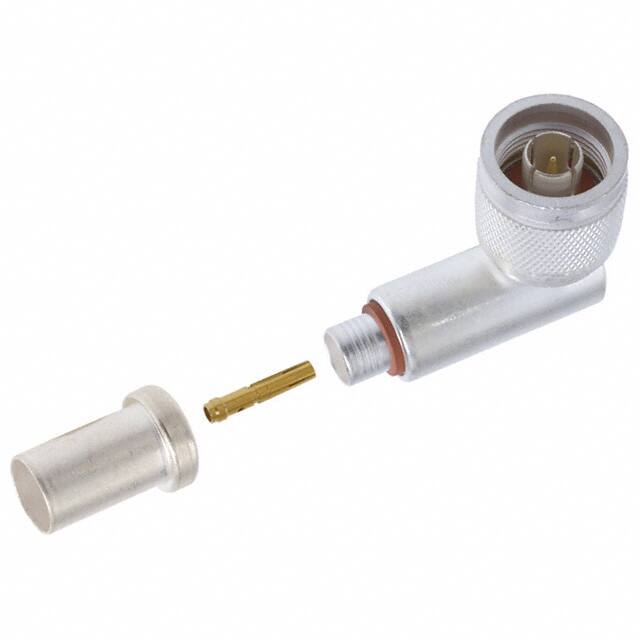

Includes

3 pcs - 1 Connector, 1 Contact, 1 Ferrule

Center Contact Material

Beryllium Copper
