221265-1

Teknik Özellikler

Elv

Compliant

Nominal Gerilim

500V

Cable Group

RG-58, 58A, 58B, 58C, 141, 141A, 142, 142A, 142B

Insulation Resistance

5GOhm

Body Finish

Nickel

Body Material

Brass

Frekans

4GHz

Mating Cycles

500

Mil Conformance

NO

RoHS Durumu

Non-RoHS Compliant

Fabrika Tedarik Süresi

16 Weeks

JESD-609 Kodu

e4

Housing Color

Silver

Center Contact Plating

Gold

Parça Durumu

Active

Gender

Male

Uzunluk

31.75mm

Connector Style

BNC

Shield Termination

Clamp

Polarity

Standard

Includes

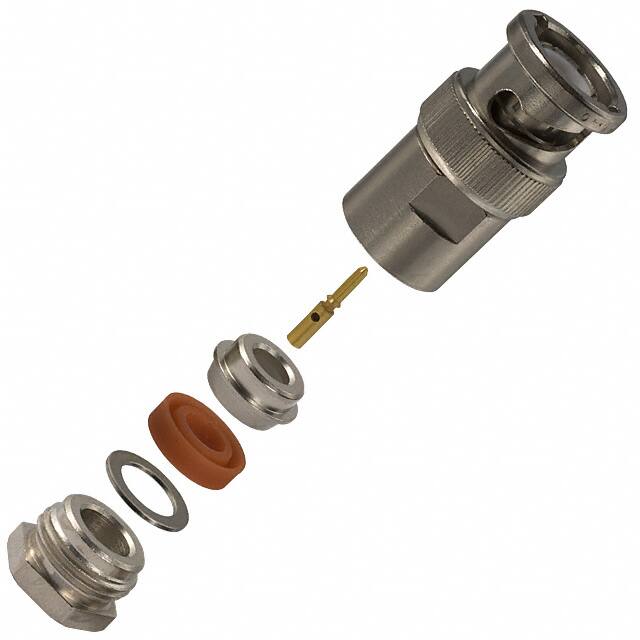

6 pcs - 1 Connector, 1 Clamp Braid, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer

Dielectric Material

Polytetrafluoroethylene (PTFE)

Montaj

Cable, Free Hanging

Insulation Materials

Polytetrafluoroethylene

Lifecycle Status

ACTIVE (Last Updated: 6 days ago)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Kurşunsuz

Not Applicable

ECCN Kodu

EAR99

Fastening Type

Bayonet Lock

Yayın Yılı

1997

Option

GENERAL PURPOSE

Vswr

1.3

Empedans

50Ohm

Pozisyon Sayısı

1

Connector Type

Plug, Male Pin

Kurşunsuz Kodu

no

Ambalaj

Bulk

Filter Feature

NO

Insertion Loss

0.2 dB
