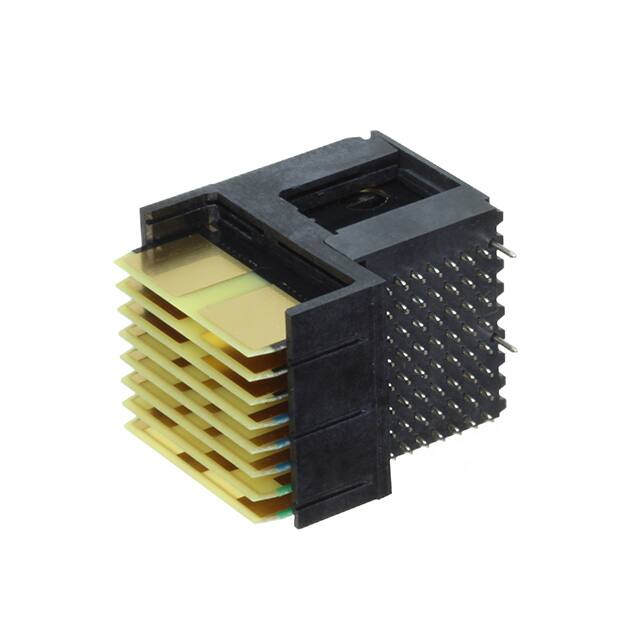

2102772-1

Teknik Özellikler

Ambalaj

Rail/Tube

Gender

Male

Connector Type

Plug, Male Blades

Total Number Of Contacts

56

Seri

MultiGig RT2-R

Kurşunsuz

Lead Free

Mating Alignment

With

Renk

Black

Din Conformance

NO

Fabrika Tedarik Süresi

8 Weeks

Terminal

Press-Fit

Sıra Sayısı

7

Parça Durumu

Active

Contact Plating

Lead

Connector Style

VITA 46, Half, Left End

Orientation

Right Angle

RoHS Durumu

Non-RoHS Compliant

Connector Usage

Daughtercard

Pitch

0.071 1.80mm

Row Spacing

53 μm

Yayın Yılı

2013

Housing Material

Polymer

Pozisyon Sayısı

56

Number Of Columns

8

REACH Uyumluluk Kodu

not_compliant

Contact Finish

Gold

Ul Flammability Code

94V-0

Contact Current Rating

1A

ECCN Kodu

EAR99

Number Of Positions Loaded

53

Akım Değeri

1A

Iec Conformance

NO

Depth

22.31mm

Montaj Tipi

Board Edge, Through Hole, Right Angle

Mil Conformance

NO

Contact Layout Typical

4 Signal Pairs, 16 Single Signal, 6 Power Groups, 11 Ground, 3 Open

Contact Finish Thickness

50.0μin 1.27μm

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Contact Materials

Bronze

Max Current Rating

1A
