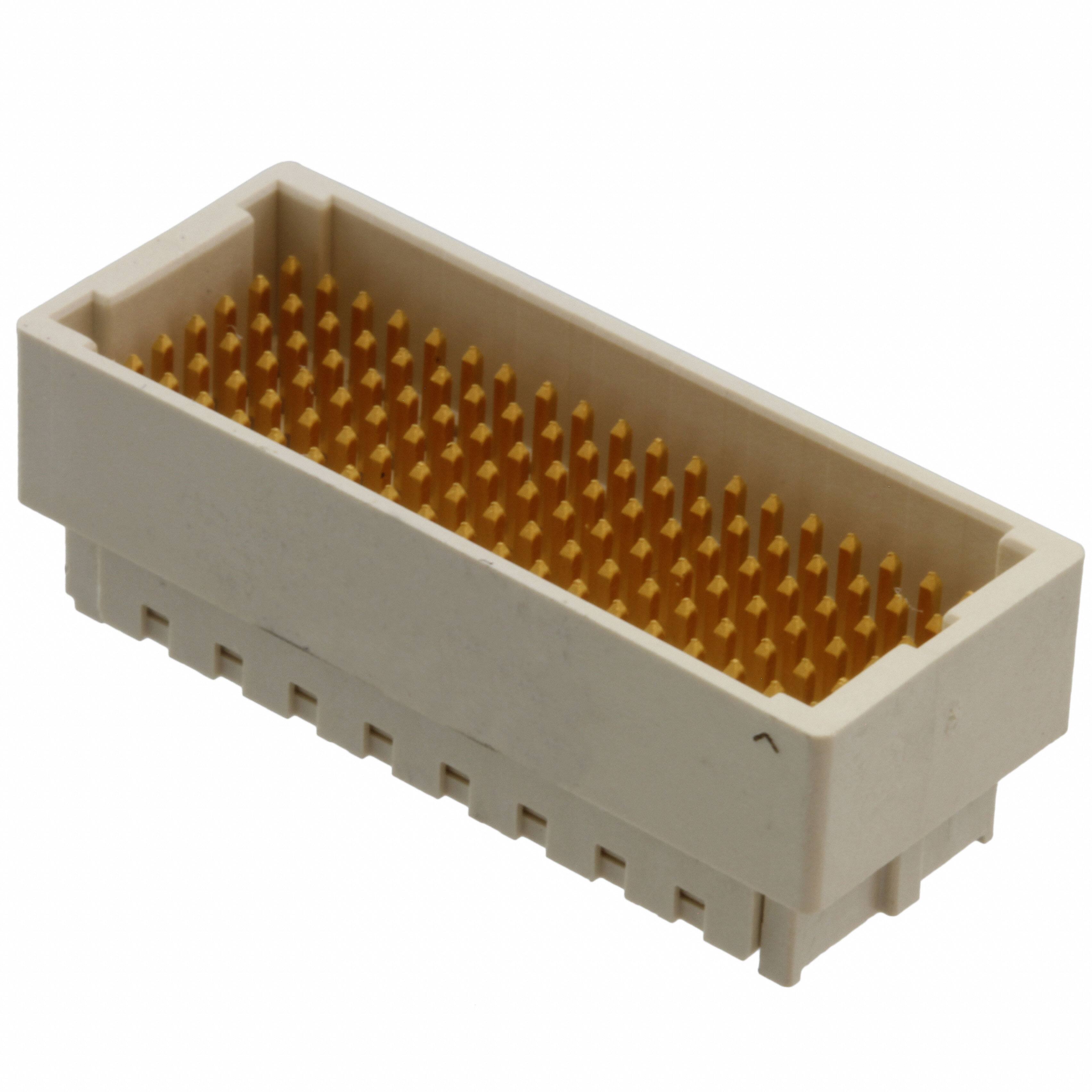

2102060-3

Teknik Özellikler

Filter Feature

NO

Sıra Sayısı

6

Montaj Tipi

Surface Mount

Insulation Height

0.360 9.14mm

Yükseklik

9.133713mm

Mil Conformance

NO

Fabrika Tedarik Süresi

26 Weeks

Style

Board to Board

Operating Supply Voltage

250V

Fastening Type

Push-Pull

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Number Of Positions Loaded

All

Montaj

Surface Mount

Seri

Mezalok, VITA 61

Contact Finish Thickness Mating

30.0μin 0.76μm

Stackable

Yes

Contact Type

Male Pin

Min. Çalışma Sıcaklığı

-55°C

Yayın Yılı

2012

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

114

Elv

Non-Compliant

Pcb Mount Retention

Without

Housing Color

Natural

Kurşunsuz Kodu

no

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Cut Tape (CT)

Iec Conformance

NO

Contact Finish Mating

Gold

Insulation Resistance

1GOhm

Shrouding

Shrouded - 4 Wall

RoHS Durumu

Non-RoHS Compliant

Kurşunsuz

Contains Lead

Özellikler

Pick and Place

Housing Material

Polymer

Total Number Of Contacts

114

Orientation

Vertical

Lifecycle Status

ACTIVE (Last Updated: 5 months ago)

Terminal

Solder
