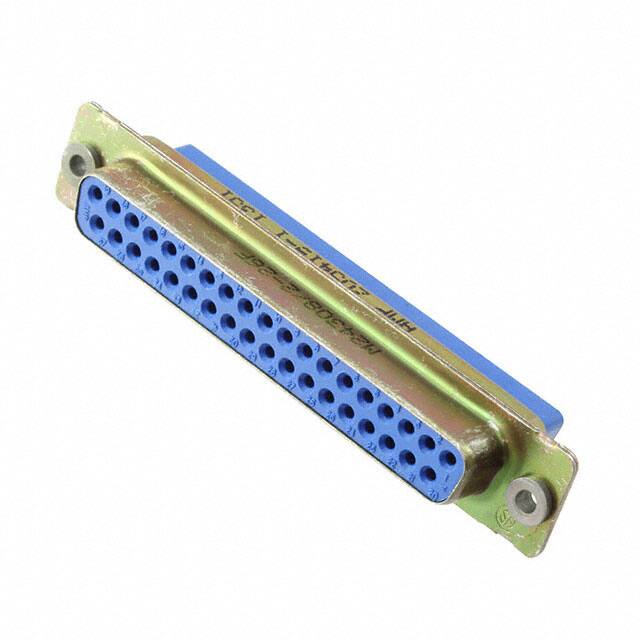

205419-1

Teknik Özellikler

ECCN Kodu

EAR99

Reference Standard

UL, CSA

Hole Diameter

2.26 mm

Note

Contacts Not Included

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Material

Polyester, Glass Filled

Sıra Sayısı

2

Ambalaj

Bulk

Connector Style

D-Sub

Gender

Receptacle

Body Breadth

0.494 inch

Yayın Yılı

1997

Contact Type

Signal

Total Number Of Contacts

37

Mounting Option1

HOLE .099-.111

Renk

Blue

Plating

Cadmium

Montaj Tipi

Free Hanging (In-Line)

Shell Size Connector Layout

4 DC C

Mounting Option2

LOCKING

Fabrika Tedarik Süresi

13 Weeks

Operating Temperature Min

-55°C

RoHS Durumu

Non-RoHS Compliant

Connector Type

Receptacle for Female Contacts

Mixed Contacts

NO

Option

GENERAL PURPOSE

Housing Material

Steel

Pozisyon Sayısı

37

HTS Kodu

8536.69.40.30

Contact Style

Crimp

Empty Shell

YES

Flange Feature

Housing/Shell (Unthreaded)

Akım Değeri

7.5A

Uzunluk

69.32mm

Shell Material Finish

Steel, Cadmium Plated

Orientation

Straight

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Iec Conformance

NO

Sealable

No

Depth

16.36mm
