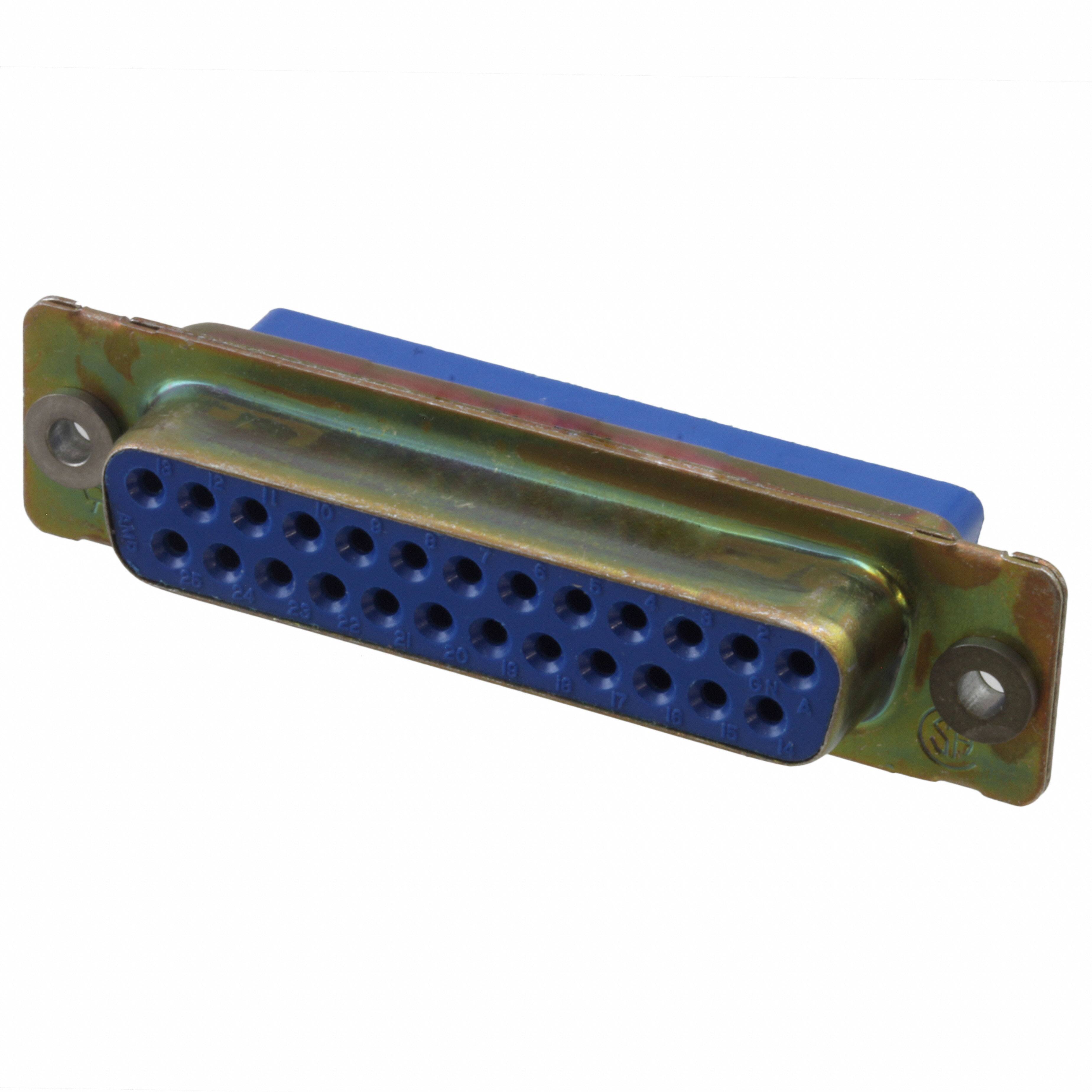

205418-1

Teknik Özellikler

Fabrika Tedarik Süresi

6 Weeks

Operating Temperature Min

-50°C

RoHS Durumu

Non-RoHS Compliant

Connector Type

Receptacle for Female Contacts

Mixed Contacts

NO

Option

GENERAL PURPOSE

Kurşunsuz

Contains Lead

Contact Finish Mating

NOT SPECIFIED

Housing Material

Polyester

Pozisyon Sayısı

25

Hole Diameter

3.05 mm

Note

Contacts Not Included

Contact Style

Crimp

Empty Shell

YES

Flange Feature

Housing/Shell (Unthreaded)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

53.04mm

Dielectric Material

Polyester, Glass Filled

Shell Material Finish

Steel, Cadmium Plated

Orientation

Straight

Iec Conformance

NO

Sıra Sayısı

2

Depth

16.36mm

REACH Uyumluluk Kodu

not_compliant

Ambalaj

Bulk

Connector Style

D-Sub

Gender

Female

Yayın Yılı

2008

Shell Material

Steel

Seri

Military, MIL-DTL-24308, AMPLIMITE 109

Contact Type

Signal

Total Number Of Contacts

25

Din Conformance

NO

Parça Durumu

Obsolete

Mil Conformance

YES

Filter Feature

NO

Renk

Blue

Montaj

Bushing

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Plating

Cadmium
