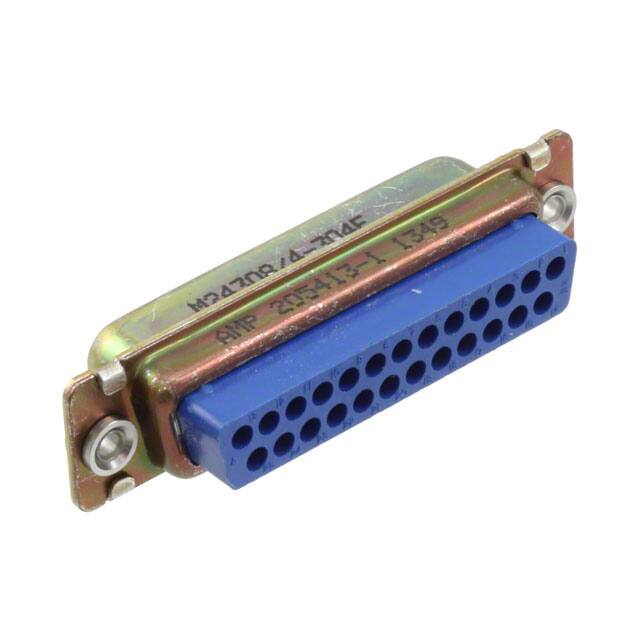

205413-1

Teknik Özellikler

RoHS Durumu

Non-RoHS Compliant

Connector Type

Plug for Male Contacts

Mixed Contacts

NO

Fabrika Tedarik Süresi

5 Weeks

Operating Temperature Min

-50°C

Housing Material

Polyester

Pozisyon Sayısı

25

Option

GENERAL PURPOSE

Hole Diameter

3.05 mm

Note

Contacts Not Included

Contact Style

Crimp

Empty Shell

YES

Flange Feature

Housing/Shell (Unthreaded)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Radyasyon Dayanımı

No

Iec Conformance

NO

Sıra Sayısı

2

Uzunluk

53.04mm

Dielectric Material

Polyester, Glass Filled

Shell Material Finish

Steel, Cadmium Plated

Connector Style

D-Sub

Gender

Male

Yayın Yılı

1997

Seri

Military, MIL-DTL-24308, AMPLIMITE 109

Shell Material

Steel

Depth

16.36mm

Ambalaj

Bulk

Parça Durumu

Obsolete

Contact Type

Signal

Din Conformance

NO

Total Number Of Contacts

25

Montaj Tipi

Free Hanging (In-Line)

Elv

Non-Compliant

Shell Size Connector Layout

3 DB B

Filter Feature

NO

Mil Conformance

YES

Renk

Blue

Montaj

Bushing

Mating Information

MULTIPLE MATING PARTS AVAILABLE
