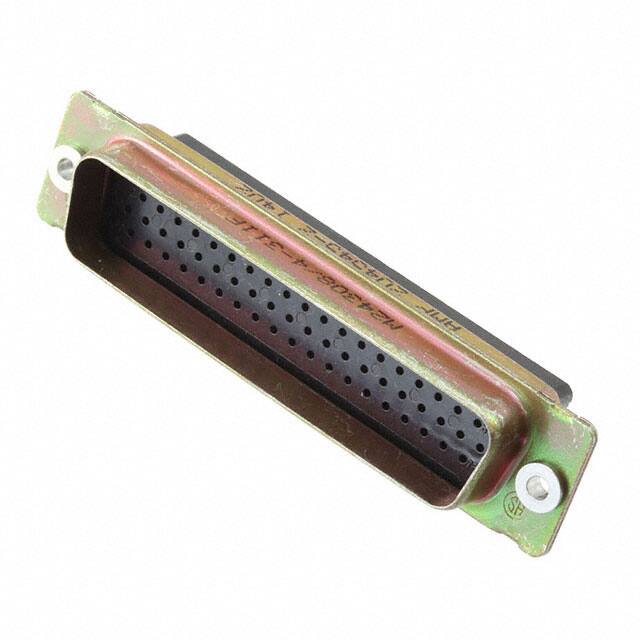

204533-1

Teknik Özellikler

Housing Material

Polyphenylene

Ambalaj

Bulk

Total Number Of Contacts

78

Shell Material Finish

Steel, Cadmium Plated

Body Breadth

0.605 inch

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Note

Contacts Not Included

Yayın Yılı

2008

Option

GENERAL PURPOSE

Contact Design

PREASSEM CONN

Montaj Tipi

Free Hanging (In-Line)

Hole Diameter

3.05 mm

Filter Feature

NO

Reliability

COMMERCIAL

Flange Feature

Housing/Shell (Unthreaded)

Parça Durumu

Obsolete

Gender

Male

Iec Conformance

NO

Contact Style

Crimp

Depth

15.37mm

Pozisyon Sayısı

78

RoHS Durumu

Non-RoHS Compliant

Sıra Sayısı

4

ECCN Kodu

EAR99

Montaj

Bushing

Shell Material

Steel

Connector Style

D-Sub, High Density

Empty Shell

YES

Orientation

Straight

Housing Color

Black

Shell Size Connector Layout

5 DD D High Density

Reference Standard

UL, CSA

Connector Type

Plug for Male Contacts

Plating

Cadmium

Fabrika Tedarik Süresi

5 Weeks

Mil Conformance

YES

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Uzunluk

66.93mm

Mixed Contacts

NO

Din Conformance

NO
