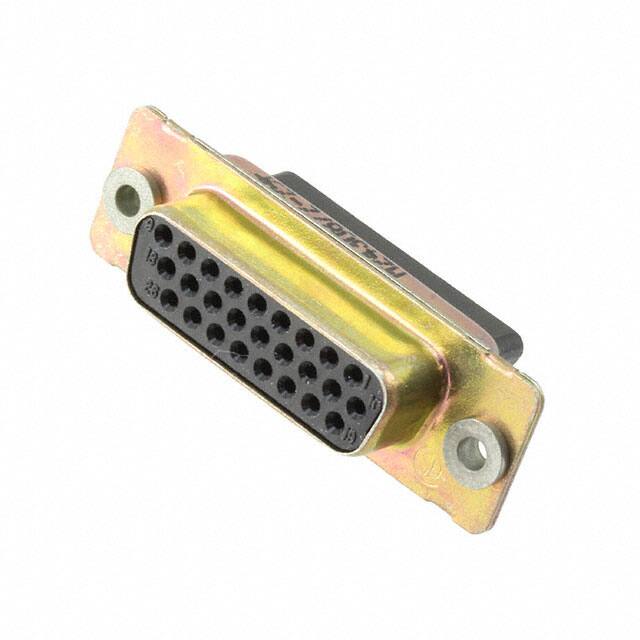

204526-1

Teknik Özellikler

Flange Feature

Housing/Shell (Unthreaded)

Filter Feature

NO

Hole Diameter

3.05 mm

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

26

Sıra Sayısı

3

RoHS Durumu

Non-RoHS Compliant

Contact Style

Crimp

Iec Conformance

NO

Gender

Receptacle

Parça Durumu

Obsolete

Total Number Of Contacts

26

Housing Material

Polyester

Ambalaj

Bulk

Option

GENERAL PURPOSE

Yayın Yılı

2008

Note

Contacts Not Included

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Shell Material Finish

Steel, Cadmium Plated

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Mil Conformance

YES

Fabrika Tedarik Süresi

3 Weeks

Plating

Cadmium

Connector Type

Receptacle for Female Contacts

Nem Hassasiyeti (MSL)

1 (Unlimited)

Elv

Non-Compliant

Radyasyon Dayanımı

No

Contact Type

Signal

Din Conformance

NO

Mixed Contacts

NO

Uzunluk

39.14mm

Kurşunsuz

Contains Lead

Shell Material

Steel

Montaj

Bushing

Shell Size Connector Layout

2 DA A High Density

Housing Color

Black

Orientation

Straight

Empty Shell

YES

Connector Style

D-Sub, High Density
