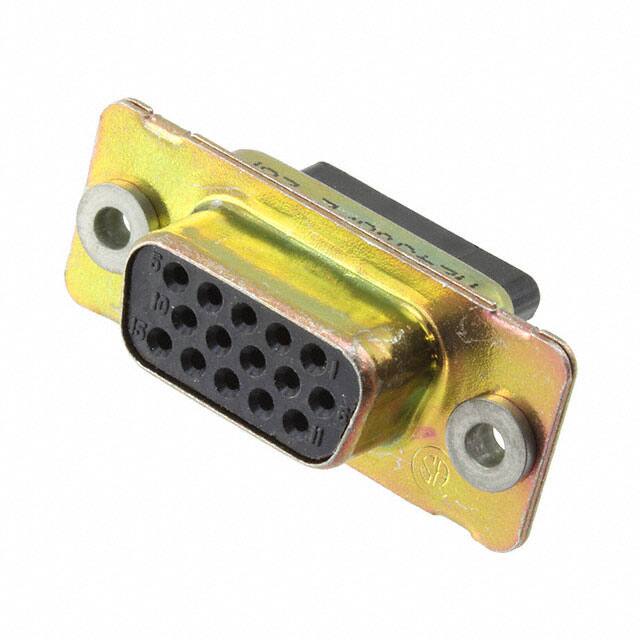

204524-1

Teknik Özellikler

Connector Type

Receptacle for Female Contacts

Reference Standard

UL, CSA

Plating

Cadmium

Fabrika Tedarik Süresi

6 Weeks

Mil Conformance

YES

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Uzunluk

30.81mm

Mixed Contacts

NO

Radyasyon Dayanımı

No

Contact Type

Signal

Din Conformance

NO

Elv

Non-Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Montaj

Bushing

Shell Material

Steel

Kurşunsuz

Not Applicable

Connector Style

D-Sub, High Density

Empty Shell

YES

Orientation

Straight

Shell Size Connector Layout

1 DE E High Density

Housing Color

Black

Contact Design

PREASSEM CONN

Montaj Tipi

Free Hanging (In-Line)

Filter Feature

NO

Hole Diameter

3.05 mm

Reliability

COMMERCIAL

Flange Feature

Housing/Shell (Unthreaded)

Parça Durumu

Obsolete

Gender

Female

Iec Conformance

NO

Depth

17.48mm

Contact Style

Crimp

Pozisyon Sayısı

15

Insulation Materials

GLASS FILLED POLYESTER

RoHS Durumu

Non-RoHS Compliant

Sıra Sayısı

3

Ambalaj

Bulk

Total Number Of Contacts

15

Shell Material Finish

Steel, Cadmium Plated
