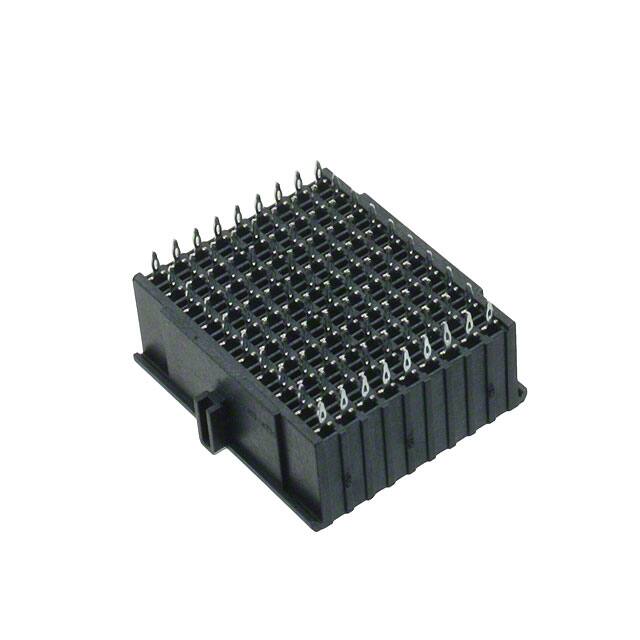

2000896-1

Teknik Özellikler

Uzunluk

18.9mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Pattern

RECTANGULAR

Contact Materials

Copper

Housing Material

Polymer

Contact Style

SQ PIN-SKT

Polarization Key

POLARIZED HOUSING

Number Of Columns

10

Max Current Rating

1.5A

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

RoHS Durumu

Non-RoHS Compliant

Pitch

1.9mm

Connector Type

Receptacle, Female Sockets

Connector Usage

Backplane, Motherboard

Ambalaj

Tube

Filter Feature

NO

Renk

Black

Gender

Receptacle

Orientation

Vertical

Contact Finish

Gold

Sıra Sayısı

9

Contact Layout Typical

30 Differential Pairs, 30 Ground

Depth

19.05mm

Flammability Rating

UL94 V-0

Terminal

Press-Fit

Number Of Conductors

ONE

Number Of Pcb Rows

9

Çalışma Sıcaklığı

-65°C~125°C

Mixed Contacts

NO

Fabrika Tedarik Süresi

23 Weeks

Pozisyon Sayısı

90

Shrouding

Unshrouded

Seri

Fortis Zd

Contact Finish Thickness

50.0μin 1.27μm

Parça Durumu

Active

Option

GENERAL PURPOSE

Elv

Non-Compliant
