TE Connectivity Aerospace, Defense and Marine

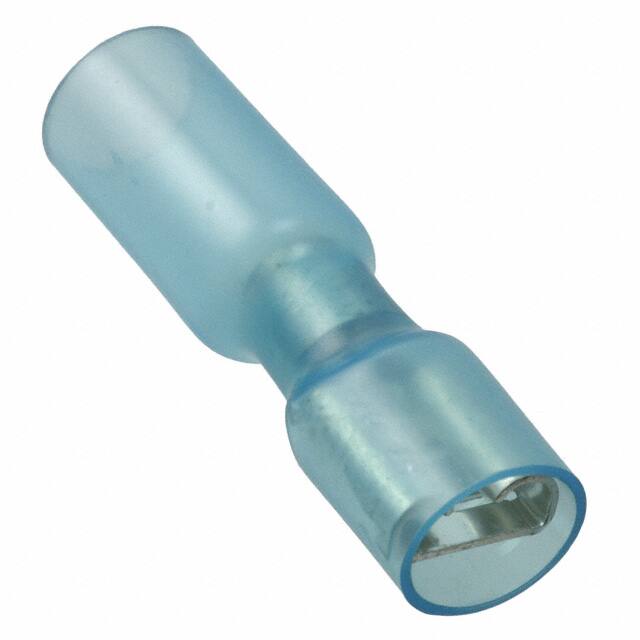

177469-000
Quick-Connect & Quick-Disconnect Connectors
StoktaRoHS: Compliant
Adet bazlı fiyat
- 1+ adet$1.56
- 10+ adet$1.48
- 100+ adet$1.39
- 500+ adet$1.31
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Elv
- Compliant
- Studtab Size
- 6.35 mm
- Terminal Stili
- Crimp
- Mating Tab Width
- 6.35mm
- Radyasyon Dayanımı
- No
- Insulated Wire Support
- No
- Width Tab
- 0.250 6.35mm
- Uzunluk
- 31.75mm
- Renk
- Blue
- Plating
- Tin
- Contact Finish
- Tin
- Tab Thickness
- 810μm
- Montaj Tipi
- Free Hanging (In-Line)
- Material
- Brass
- Terminal Material
- Brass
- Yayın Yılı
- 2006
- Insulation
- Fully Insulated Heat Shrink
- Body Material
- Brass
- Contact Materials
- Brass
- Terminal
- Crimp
- Insulation Materials
- Polyamide
- Insulation Diameter
- 4.6 mm
- RoHS Durumu
- RoHS Compliant
- Seri
- Dura-Seal
- Lifecycle Status
- ACTIVE (Last Updated: 3 days ago)
- Terminal Type
- Standard
- Wire Gauge
- 14-16 AWG
- Wire Gauge Max
- 16 AWG
- Montaj
- Free Hanging
- Parça Durumu
- Active
- Body Plating
- Tin
- Contact Plating
- Tin
- Orientation
- Straight
- Wire Gauge Min
- 14 AWG
- Gender
- Female
- Ambalaj
- Bulk
- Wirecable Diameter
- 4.45 mm
- Fabrika Tedarik Süresi
- 4 Weeks
- Length Overall
- 1.260 32.00mm
