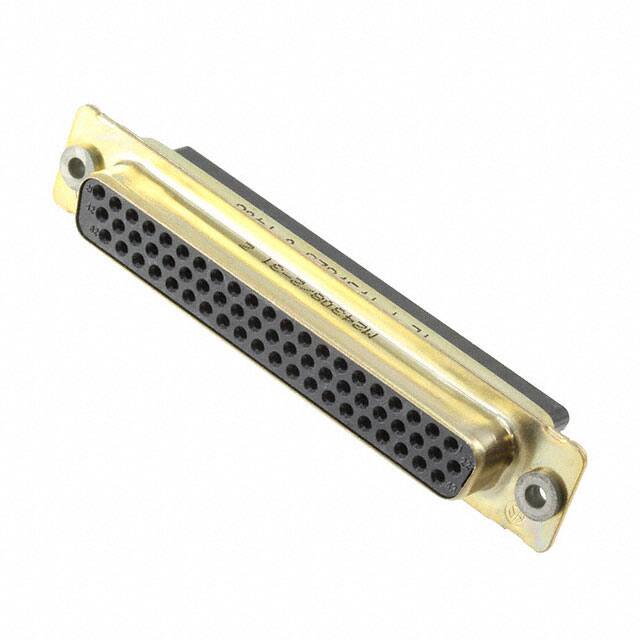

1757826-4

Teknik Özellikler

Parça Durumu

Obsolete

ECCN Kodu

EAR99

Connector Style

D-Sub, High Density

Orientation

Straight

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Gender

Female

Ambalaj

Bulk

Mil Conformance

NO

Flange Feature

Housing/Shell (Unthreaded)

Fabrika Tedarik Süresi

3 Weeks

Mounting Option1

HOLE .087-.098

Connector Type

Receptacle for Female Contacts

Pozisyon Sayısı

62

Yayın Yılı

2009

Contact Type

Signal

Shell Finish Thickness

200μin 5.08μm

Empty Shell

NO

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Note

Contacts Not Included

Insulation Materials

POLYPHENYLENE SULFIDE

Sıra Sayısı

3

RoHS Durumu

RoHS Compliant

Operating Temperature Max

125°C

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Mounting Option2

LOCKING

Depth

17.06mm

Uzunluk

69.7mm

Plating

Zinc

Iec Conformance

NO

Filter Feature

NO

Shell Size Connector Layout

4 DC C High Density

Body Breadth

0.509 inch

Option

GENERAL PURPOSE

Montaj Tipi

Free Hanging (In-Line)

Mixed Contacts

NO

Din Conformance

NO

Sealable

No

Total Number Of Contacts

62

Nem Hassasiyeti (MSL)

1 (Unlimited)

Hole Diameter

2.2352 mm
