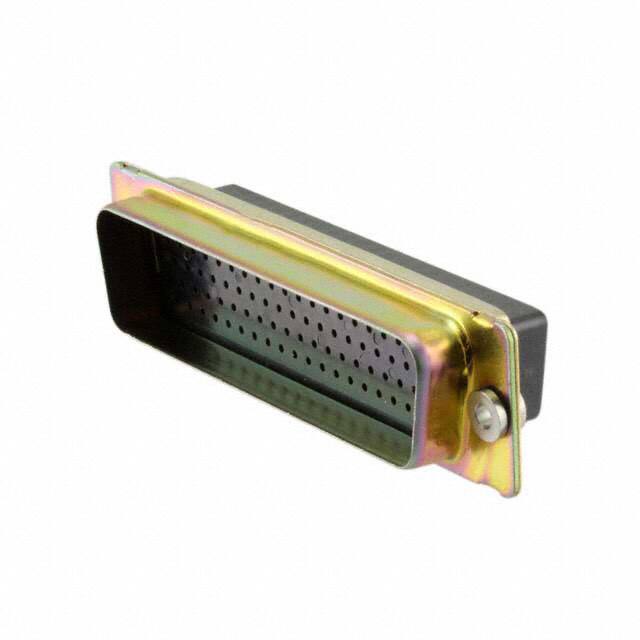

1757825-6

Teknik Özellikler

Flange Feature

Housing/Shell (Unthreaded)

Contact Materials

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

NOT SPECIFIED

Kurşunsuz Kodu

yes

Pozisyon Sayısı

104

Note

Contacts Not Included

Plating

Zinc

Empty Shell

YES

Reliability

COMMERCIAL

Kurşunsuz

Lead Free

Body Length Or Diameter

2.744 inch

Housing Material

Steel

Mixed Contacts

NO

Fabrika Tedarik Süresi

3 Weeks

Additional Feature

AMPLIMITE, COMPATIBLE CONTACT: 204370-2

Connector Style

D-Sub, High Density

Contact Style

Crimp

ECCN Kodu

EAR99

Total Number Of Contacts

104

Ambalaj

Bulk

Iec Conformance

NO

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Filter Feature

NO

Hole Diameter

3.05 mm

Elv

Compliant

Connector Type

Plug for Male Contacts

Contact Type

Signal

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Sıra Sayısı

5

Mil Conformance

NO

Montaj

Bushing

Shell Finish Thickness

20μin 0.51μm

Shell Size Connector Layout

6
