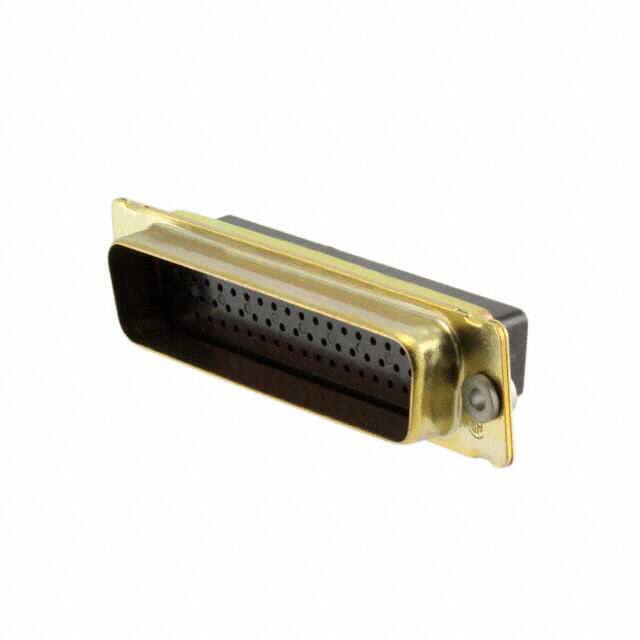

1757825-5

Teknik Özellikler

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flange Feature

Housing/Shell (Unthreaded)

Contact Style

Crimp

Connector Style

D-Sub, High Density

Fabrika Tedarik Süresi

3 Weeks

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Body Length Or Diameter

2.65 inch

Housing Material

Steel

Mixed Contacts

NO

Empty Shell

YES

Note

Contacts Not Included

Plating

Zinc

Pozisyon Sayısı

78

RoHS Durumu

RoHS Compliant

Montaj Tipi

Free Hanging (In-Line)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Din Conformance

NO

Body Breadth

0.62 inch

Parça Durumu

Obsolete

Option

GENERAL PURPOSE

Connector Type

Plug for Male Contacts

Elv

Compliant

Contact Type

Signal

Operating Temperature Min

-55°C

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Iec Conformance

NO

Hole Diameter

3.05 mm

Filter Feature

NO

Total Number Of Contacts

78

Ambalaj

Bulk

Orientation

Straight

Yayın Yılı

2010

Contact Design

PREASSEM CONN

Operating Temperature Max

125°C

Gender

Male

Shell Finish Thickness

20μin 0.51μm

Shell Size Connector Layout

5 DD D High Density
