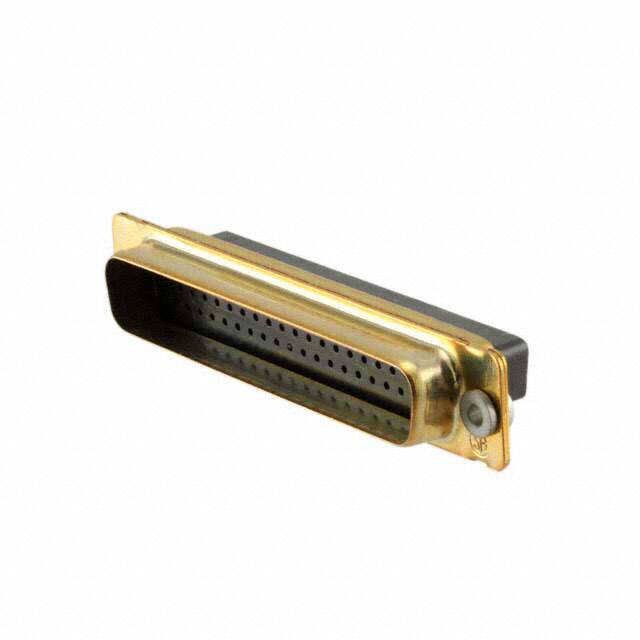

1757825-4

Teknik Özellikler

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

Body Breadth

0.509 inch

Din Conformance

NO

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Total Number Of Contacts

62

Ambalaj

Bulk

Filter Feature

NO

Hole Diameter

3.05 mm

Iec Conformance

NO

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Operating Temperature Min

-55°C

Contact Type

Signal

Connector Type

Plug for Male Contacts

Elv

Compliant

Gender

Male

Operating Temperature Max

125°C

Contact Design

PREASSEM CONN

Yayın Yılı

2013

Orientation

Straight

Mil Conformance

NO

Sıra Sayısı

3

Montaj

Bushing

Shell Finish Thickness

20μin 0.51μm

Shell Size Connector Layout

4 DC C High Density

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Flange Feature

Housing/Shell (Unthreaded)

Reliability

COMMERCIAL

Body Length Or Diameter

2.744 inch

Housing Material

Steel

Mixed Contacts

NO

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

15 Weeks

Connector Style

D-Sub, High Density

Contact Style

Crimp
