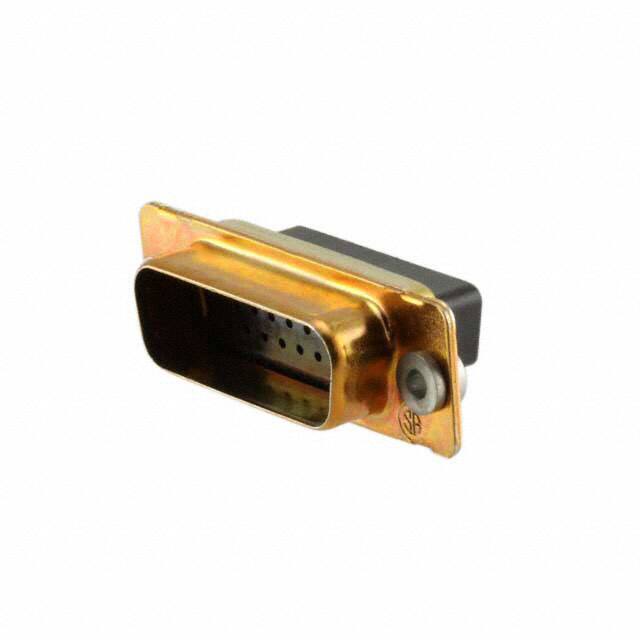

1757825-2

Teknik Özellikler

Shell Finish Thickness

20μin 0.51μm

Shell Size Connector Layout

2 DA A High Density

Radyasyon Dayanımı

No

Montaj

Bushing

Sıra Sayısı

3

Mil Conformance

NO

Orientation

Straight

Contact Design

PREASSEM CONN

Yayın Yılı

2013

Operating Temperature Max

125°C

Gender

Male

Connector Type

Plug for Male Contacts

Elv

Compliant

Contact Type

Signal

Operating Temperature Min

-55°C

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Iec Conformance

NO

Hole Diameter

3.05 mm

Filter Feature

NO

Total Number Of Contacts

26

Ambalaj

Bulk

RoHS Durumu

RoHS Compliant

Montaj Tipi

Free Hanging (In-Line)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Din Conformance

NO

Body Breadth

0.509 inch

Parça Durumu

Obsolete

Option

GENERAL PURPOSE

Empty Shell

YES

Note

Contacts Not Included

Plating

Zinc

Body Depth

0.415 inch

Pozisyon Sayısı

26

Connector Style

D-Sub, High Density

Contact Style

Crimp

Fabrika Tedarik Süresi

3 Weeks

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Mixed Contacts

NO
