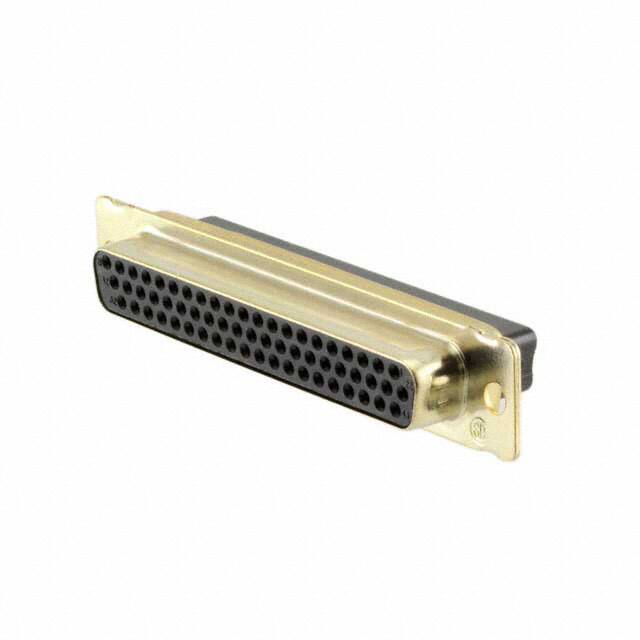

1757824-4

Teknik Özellikler

Contact Plating

Gold

Fabrika Tedarik Süresi

14 Weeks

Mixed Contacts

NO

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-50°C~125°C

Pozisyon Sayısı

62

Body Material

Steel

Empty Shell

YES

Plating

Zinc

Sealable

No

Flange Feature

Housing/Shell (Unthreaded)

Yayın Yılı

2008

Mounting Option1

HOLE .112-.124

Reach Svhc

Unknown

Akım Değeri

5A

Shell Finish Thickness

200μin 5.08μm

Shell Size Connector Layout

4 DC C High Density

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Option

GENERAL PURPOSE

Parça Durumu

Active

Body Breadth

0.509 inch

Seri

Military, MIL-DTL-24308, AMPLIMITE 90

Hole Diameter

3.048 mm

Iec Conformance

NO

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Total Number Of Contacts

62

Elv

Compliant

Insulation Materials

POLYPHENYLENE SULFIDE

Genişlik

12.93mm

ECCN Kodu

EAR99

Connector Style

D-Sub, High Density

Contact Style

Crimp

Note

Contacts Not Included

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Uzunluk

69.7mm

Mounting Option2

LOCKING

Contact Design

PREASSEM CONN

Orientation

Straight

Gender

Receptacle
