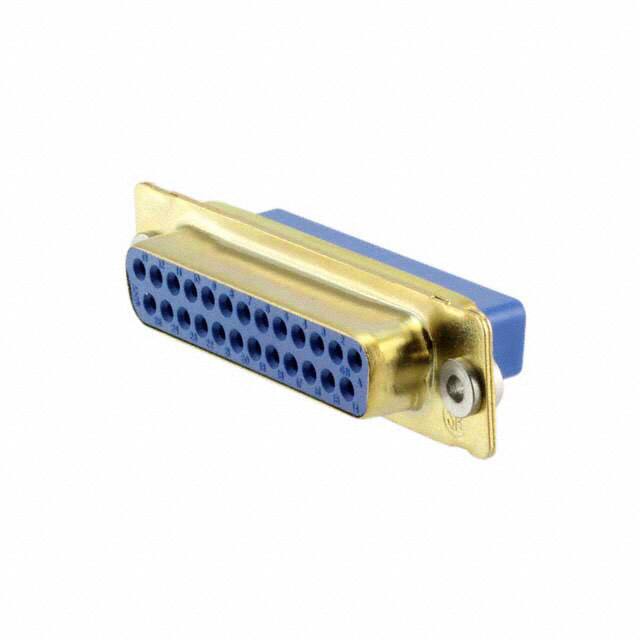

1757822-3

Teknik Özellikler

Montaj

Bushing

HTS Kodu

8536.69.40.30

Shell Finish Thickness

20μin 0.51μm

Shell Size Connector Layout

3 DB B

Yayın Yılı

2009

Total Number Of Contacts

25

Hole Diameter

3.05 mm

Iec Conformance

NO

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Elv

Compliant

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

Body Breadth

0.509 inch

Seri

Military, MIL-DTL-24308, AMPLIMITE 109

Pozisyon Sayısı

25

Plating

Zinc

Empty Shell

YES

Mixed Contacts

NO

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

3 Weeks

Maks. Çalışma Sıcaklığı

125°C

Additional Feature

AMPLIMATE

Flange Feature

Housing/Shell (Unthreaded)

Wire Gauge Max

18 AWG

Mil Conformance

NO

Sıra Sayısı

2

Depth

16.36mm

Gender

Female

Wire Gauge Min

8 AWG

Contact Design

PREASSEM CONN

Orientation

Straight

Housing Color

Yellow

Renk

Blue

Ambalaj

Bulk

Filter Feature

NO

Contact Type

Signal

Connector Type

Receptacle for Female Contacts

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

Free Hanging (In-Line)
