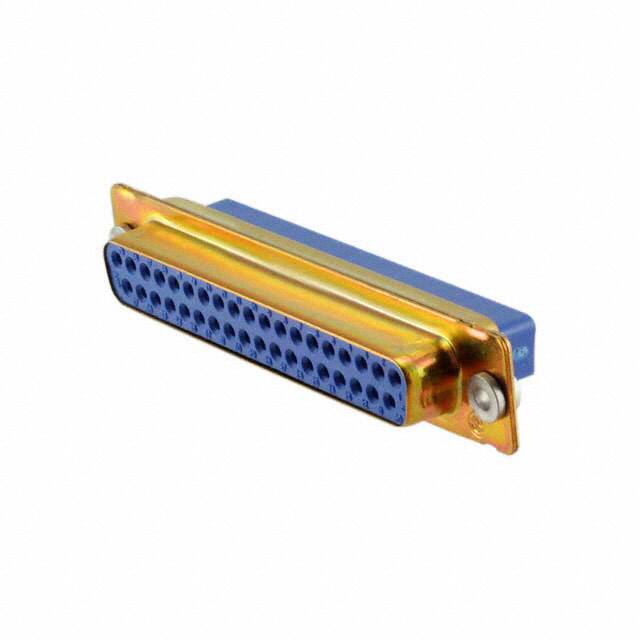

1757821-2

Teknik Özellikler

Flange Feature

Housing/Shell (Unthreaded)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Material

Polyester

Uzunluk

39.14mm

Pozisyon Sayısı

15

Empty Shell

NO

Note

Contacts Not Included

Plating

Zinc

Fabrika Tedarik Süresi

3 Weeks

Connector Style

D-Sub

Contact Style

Crimp

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Mixed Contacts

NO

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Iec Conformance

NO

Hole Diameter

3.05 mm

Filter Feature

NO

Total Number Of Contacts

15

Ambalaj

Bulk

Connector Type

Plug for Male Contacts

Elv

Compliant

Operating Temperature Min

-55°C

Contact Type

Signal

Din Conformance

NO

Body Breadth

0.509 inch

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Seri

Military, MIL-DTL-24308, AMPLIMITE 109

Montaj Tipi

Free Hanging (In-Line)

Depth

16.26mm

Montaj

Bushing, Front

Sıra Sayısı

2

Mil Conformance

YES

Radyasyon Dayanımı

No

Shell Size Connector Layout

2 DA A

Shell Finish Thickness

20μin 0.51μm

HTS Kodu

8536.69.40.30

Shell Material

Steel
