1060469-1

Teknik Özellikler

Includes

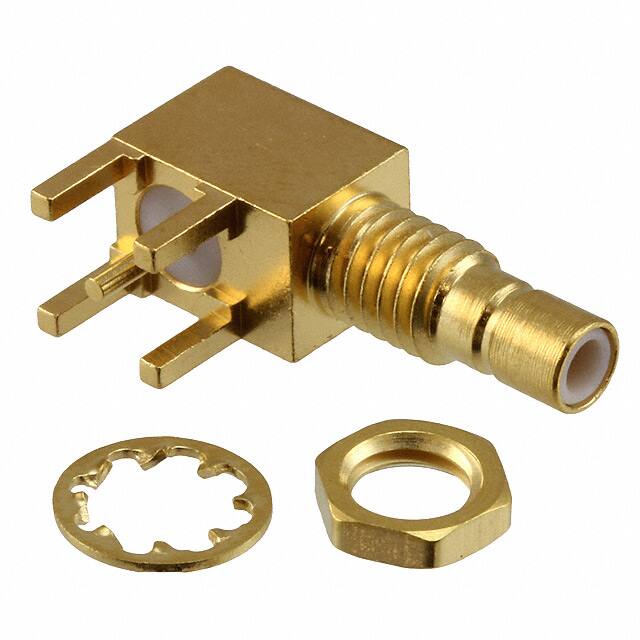

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut

Nominal Gerilim

335V

Length Tail

3.937mm

Pozisyon Sayısı

1

Connector Style

SMB

RoHS Durumu

RoHS Compliant

Yayın Yılı

2011

Mil Conformance

NO

Montaj

Panel

Pcb Mounting Orientation

Right Angle

Çalışma Sıcaklığı

-65°C~165°C

Body Breadth

0.25 inch

Contact Style

COAX

Depth

19.9mm

Orientation

Right Angle

Connector Type

Receptacle, Male Pin

Center Contact Plating

Gold

Gender

Female

Reliability

COMMERCIAL

Mounting Feature

Bulkhead - Front Side Nut

Dielectric Material

Polytetrafluoroethylene (PTFE)

Fabrika Tedarik Süresi

14 Weeks

Insertion Loss

0.6dB

Mating Cycles

500

Fastening Type

Snap-On

Radyasyon Dayanımı

No

Additional Feature

CAPTIVE CENTER CONTACT

Din Conformance

NO

Number Of Ports

1

Frekans

4GHz

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Material

Brass

Uzunluk

11mm

Bodyshell Style

JACK

Iec Conformance

NO

Contact Termination

Solder

Elv

Compliant

Parça Durumu

Active

Total Number Of Contacts

1

Kurşunsuz Kodu

yes
