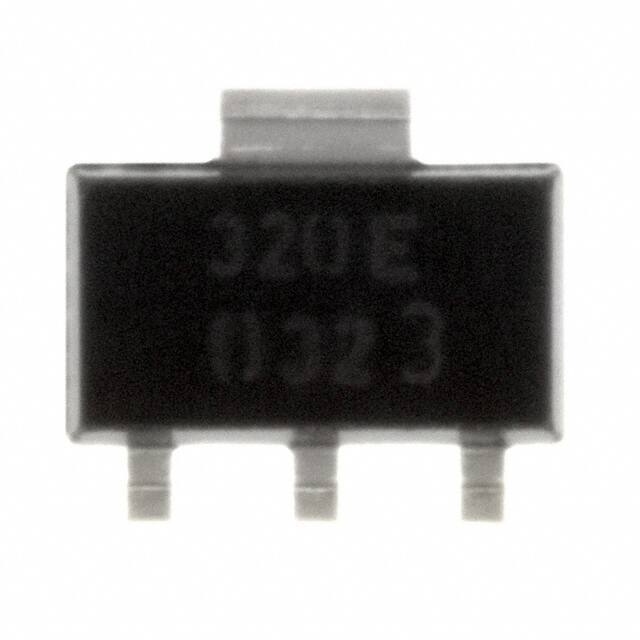

HAL320SF-E

Teknik Özellikler

Risk Rank

5.57

Output Currentmax

20 mA

Housing

PLASTIC

Hysteresis

1.8 mT

Yüzey Montaj

YES

Min. Çalışma Sıcaklığı

-40°C

REACH Uyumluluk Kodu

compliant

Body Height

1.15mm

Body Length Or Diameter

4.55mm

Terminal Kaplaması

Matte Tin (Sn)

Kurşunsuz Kodu

yes

Termination Type

SOLDER

Part Life Cycle Code

Obsolete

Output

OPEN-DRAIN

JESD-609 Kodu

e3

Package Description

TO-243

Operating Currentmax

6.8 mA

Terminal Sayısı

3

Max Output Current

30mA

Sensorstransducers Type

MAGNETIC FIELD SENSOR,HALL EFFECT

Seri

HAL®

Power Supplies

4.5/24V

Output Range

0.17-0.25V

Çıkış Tipi

ANALOG VOLTAGE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Package Shapestyle

RECTANGULAR

Package Equivalence Code

TO-243

Üretici Parça No

HAL320SF-E

Body Breadth

2.55 mm

Number Of Terminals

3

Direnç

270Ohm

Package Body Material

PLASTIC/EPOXY

Magnetic Field Rangemax

2.5 mT

Additional Feature

REVERSE VOLTAGE PROTECTION

Technology

CMOS

Max Supply Current

6.8mA

Montaj Tipi

Surface Mount

Polarity

South Pole

Output Polarity

INVERTING

Sensing Method

Hall Effect
