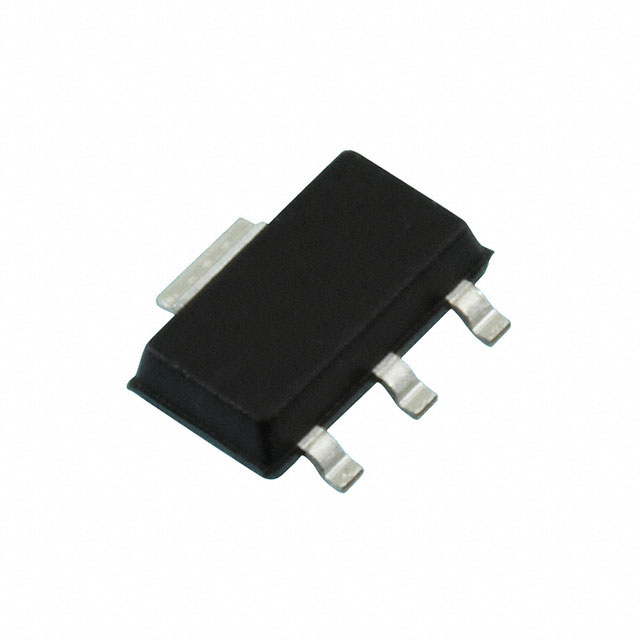

HAL320SF-A

Teknik Özellikler

Body Height

1.15mm

Body Length Or Diameter

4.55mm

Max Supply Current

6.8mA

Additional Feature

REVERSE VOLTAGE PROTECTION

Termination Type

SOLDER

Kurşunsuz Kodu

yes

Polarity

South Pole

Montaj Tipi

Surface Mount

Terminal Kaplaması

Matte Tin (Sn)

Body Breadth

2.55 mm

Housing

PLASTIC

Function

Bipolar Switch

Current Supply Max

6.8mA

Test Conditions

25°C

Magnetic Field Rangemax

2.5 mT

Yüzey Montaj

YES

Hysteresis

1.8 mT

Polarization

South Pole

Sensing Range

2.5mT Trip, -2.5mT Release

Input Mode

BIPOLAR(LATCHED)

Besleme Gerilimi

4.5V~24V

Output Range

24V

Çalışma Sıcaklığı

-40°C~140°C TA

Power Supplies

4.5/24V

Seri

HAL®

Parça Durumu

Last Time Buy

Yayın Yılı

2002

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Çıkış Tipi

Open Drain

Terminal Sayısı

3

Özellikler

Temperature Compensated

Magnetic Field Rangemin

-2.5 mT

JESD-609 Kodu

e3

Sensing Method

Hall Effect

Max Output Current

30mA

Kılıf / Paket

TO-243AA, Variant

RoHS Durumu

RoHS Compliant
