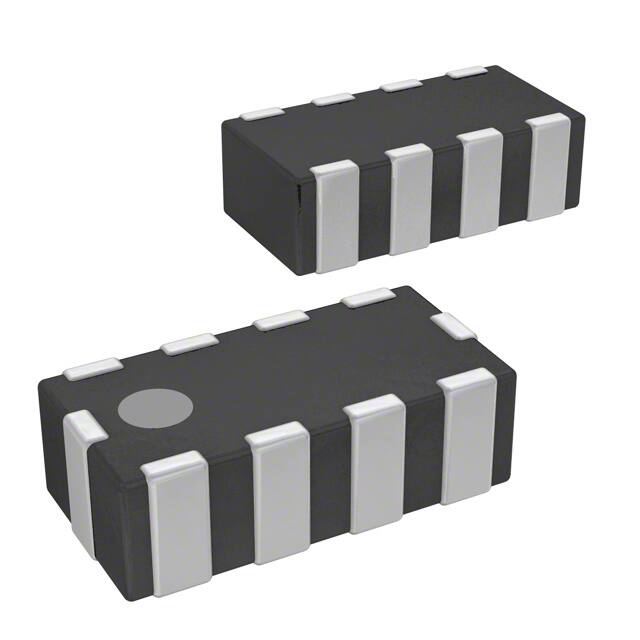

MEA2010LC150

Teknik Özellikler

Applications

Data Lines for Mobile Devices

Number Of Elements

8

Case Code Imperial

0804

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Max Dc Current

100mA

Çalışma Sıcaklığı

-40°C~85°C

Physical Dimension

L2.0XB1.0XH0.5 (mm)/L0.079XB0.039XH0.02 (inch)

Rated Current

0.1A

Values

C = 15pF

Max Voltage Rating Dc

10V

Boyut / Ölçü

0.079Lx0.039W 2.00mmx1.00mm

Voltage Rated Dc

6.3V

Yükseklik

0.024 0.60mm

Case Code Metric

2010

Additional Feature

L-TYPE CIRCUIT

Terminal

SMD/SMT

Kapasitans

15pF

Attenuation Value

20dB @ 800MHz ~ 3GHz

Filter Order

2nd

Center Cutoff Frequency

240MHz Cutoff

Montaj Tipi

Surface Mount

Parça Durumu

Not For New Designs

Attenuationfreqmax

20 dB

Number Of Channels

4

Uzunluk

2mm

Seri

MEA

Tip

Low Pass

Max Current Rating

100mA

Yayın Yılı

2013

Montaj

Surface Mount, Through Hole

Kılıf / Paket

0804 (2010 Metric), Array, 10 PC Pad

Esd Protection

No

Fonksiyon Sayısı

4

Fabrika Tedarik Süresi

12 Weeks

Test Frequency

800MHz

ECCN Kodu

EAR99
