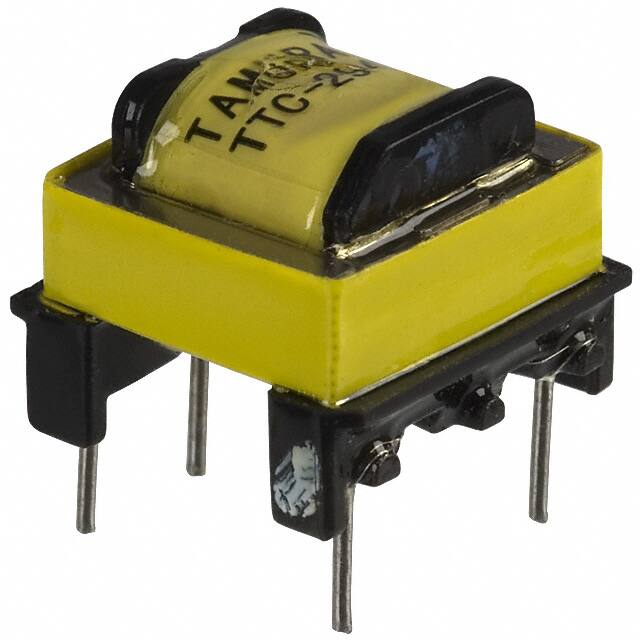

TTC-294

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Loss

1.2dB Max @ 1kHz

Terminal Stili

PC Pin

Turns Ratio Primarysecondary

1:1

Parça Durumu

Active

Frequency Response

±0.16dB

Transformer Type

Data/Voice Coupling

Maks. Oturma Yüksekliği

0.472 12.00mm

Montaj

Through Hole

Ambalaj

Bulk

RoHS Durumu

RoHS Compliant

Kurşunsuz

Contains Lead

Fabrika Tedarik Süresi

24 Weeks

ECCN Kodu

EAR99

Frequency Range

300Hz~3.5kHz

Dc Resistance Dcr Primary

58Ohm

Insertion Loss Db

1.2 dB

Dc Resistance Dcr Secondary

14Ohm 62Ohm

Voltage Isolation

1850V @ 1 Second

Onay Kuruluşu

UL1950

Boyut / Ölçü

0.591Lx0.571W 15.00mmx14.50mm

Impedance Secondary

600CT

Terminal

PC Pin

Montaj Tipi

Through Hole

Seri

TTC

Impedance Primary

600
