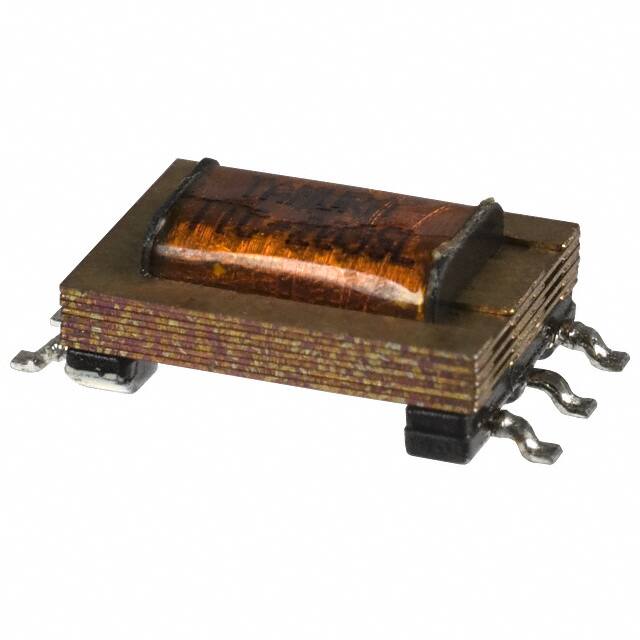

TTC-203SL

Teknik Özellikler

Montaj

Surface Mount

Maks. Oturma Yüksekliği

0.164 4.16mm

Turns Ratio Primarysecondary

1:1

Parça Durumu

Obsolete

Frequency Response

-0.35dB~0.15dB

Transformer Type

Data/Voice Coupling

Uzunluk

10.2mm

Terminal Stili

Gull Wing

Insertion Loss

2.7dB @ 1kHz

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Loss Db

2.75 dB

Dc Resistance Dcr Primary

127Ohm

Frequency Range

300Hz~3.5kHz

ECCN Kodu

EAR99

Yayın Yılı

2012

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Operating Frequencymin

0.3kHz

Ambalaj

Bulk

Return Loss

25dB Min @ 300Hz ~ 3.5kHz

Genişlik

8.38mm

Terminal

Gull Wing

Operating Frequency Max

3.5kHz

Boyut / Ölçü

0.330Lx0.402W 8.38mmx10.20mm

Impedance Secondary

346

Onay Kuruluşu

CSA-C22.2 No. 950-M89, UL1459, UL1950

Voltage Isolation

1000VRMS @ 1 Minute

Dc Resistance Dcr Secondary

150Ohm

Power Level

10mW

Impedance Primary

600

Pin Sayısı

6

Seri

TTC

Montaj Tipi

Surface Mount
