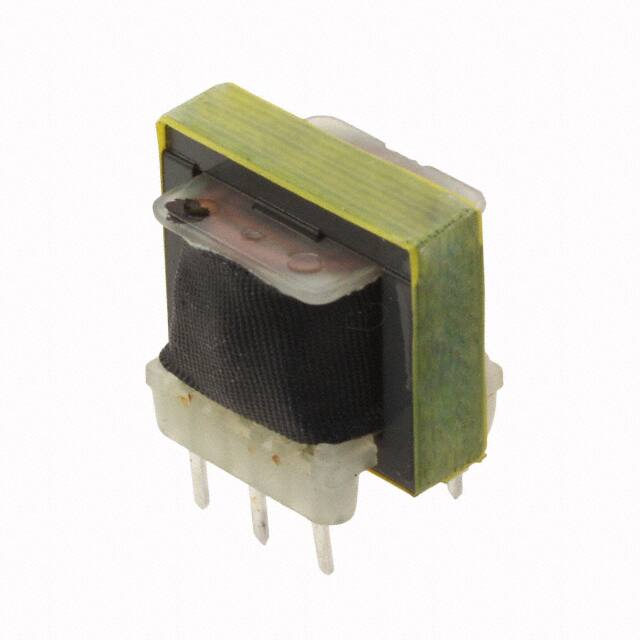

TTC-108

Teknik Özellikler

Turns Ratio Primarysecondary

1:1

Parça Durumu

Active

Frequency Response

±0.5dB

Transformer Type

Data/Voice Coupling

Maks. Oturma Yüksekliği

0.752 19.10mm

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Loss

1.4dB Max @ 1kHz

Uzunluk

19.8mm

Terminal Stili

PC Pin

Frequency Range

300Hz~3.5kHz

Dc Resistance Dcr Primary

44Ohm

Insertion Loss Db

1.2 dB

Operating Frequencymin

0.3kHz

Ambalaj

Bulk

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Yayın Yılı

2006

Fabrika Tedarik Süresi

20 Weeks

ECCN Kodu

EAR99

Onay Kuruluşu

CSA-C22.2 No. 66-M1988, UL1459

Boyut / Ölçü

0.799Lx0.689W 20.30mmx17.50mm

Operating Frequency Max

3.5kHz

Genişlik

17.5mm

Terminal

PC Pin

Dc Resistance Dcr Secondary

56Ohm

Voltage Isolation

1500VRMS @ 1 Minute

Physical Dimension

L19.8XB17.5XH19.1 (mm)

Impedance Primary

600CT

Power Level

-45dB~7dB

Montaj Tipi

Through Hole

Seri

TTC

Pin Sayısı

6
