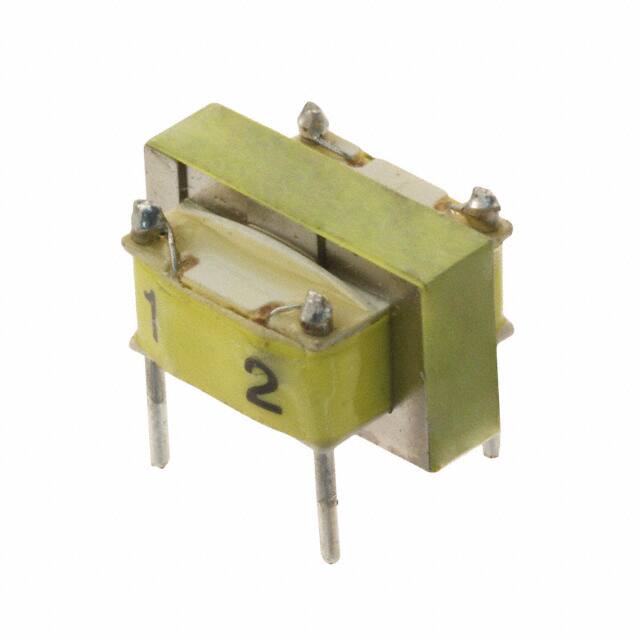

T1104

Teknik Özellikler

Onay Kuruluşu

CSA-C22.2 No. 950-M89, UL1459, UL1950

Terminal Stili

PC Pin

RoHS Durumu

RoHS Compliant

Pin Sayısı

4

Montaj

Through Hole

Transformer Type

Data/Voice Coupling

ECCN Kodu

EAR99

Ambalaj

Tray

Physical Dimension

19.8mm x 16.6mm x 11.9mm

Boyut / Ölçü

0.780Lx0.654W 19.80mmx16.60mm

Operating Frequency Max

3.5kHz

Yayın Yılı

1999

Applications

SIGNAL

Voltage Isolation

1500VRMS @ 1 Minute

Genişlik

16.6mm

Impedance Primary

600

Terminal

PC Pin

Kurşunsuz

Contains Lead

Number Of Primary Winding

1

Power Level

-45dB~7dB

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Oturma Yüksekliği

0.469 11.90mm

Accessory Type

Punchdown Block

Dc Resistance Dcr Primary

46Ohm

Insertion Loss

1dB Typ @ 1kHz

Frequency Range

300Hz~3.5kHz

Uzunluk

19.8mm

Fabrika Tedarik Süresi

25 Weeks

Montaj Tipi

Through Hole

Parça Durumu

Active

Frequency Response

±0.5dB

Yükseklik

11.9mm

Insertion Loss Db

1 dB

Number Of Secondary Winding

1

Operating Frequencymin

0.3kHz

Dc Resistance Dcr Secondary

63Ohm

Return Loss

26dB Min
