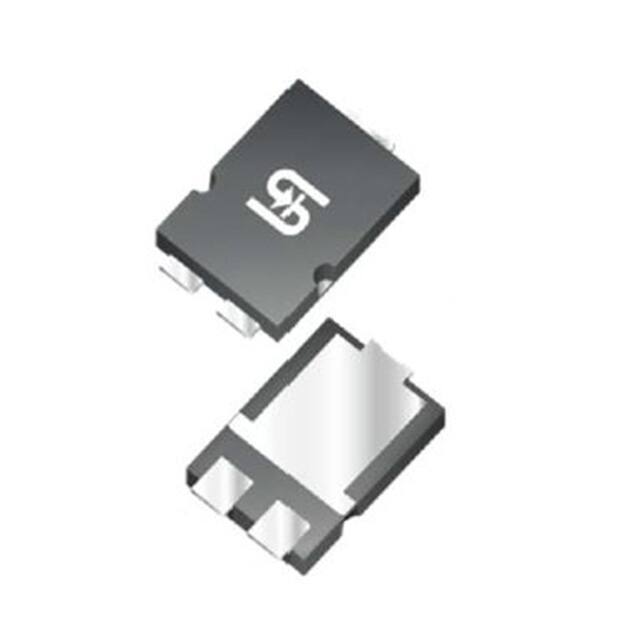

TSP10U45S S1G

Teknik Özellikler

Diode Element Material

SILICON

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Yüzey Montaj

YES

Current Average Rectified Io

10A

Ambalaj

Digi-Reel®

Operating Temperature Max

150°C

Jedec95 Code

TO-277A

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Dc Reverse Vr Max

45V

Terminal Sayısı

3

Number Of Elements

1

Configuration

SINGLE

Parça Durumu

Active

Applications

EFFICIENCY

Rep Pk Reverse Voltagemax

45V

Case Connection

CATHODE

Reverse Currentmax

300μA

Current Reverse Leakage Vr

300μA @ 45V

Jesd30 Code

R-PDSO-F3

ECCN Kodu

EAR99

Operating Temperature Junction

-55°C~150°C

Diode Type

Schottky

Output Currentmax

10A

Fabrika Tedarik Süresi

14 Weeks

Voltage Forward Vf Max If

460mV @ 10A

Additional Feature

LOW POWER LOSS

Terminal Formu

FLAT

Kılıf / Paket

TO-277, 3-PowerDFN

Montaj Tipi

Surface Mount

Terminal Pozisyonu

DUAL

HTS Kodu

8541.10.00.80

Number Of Phases

1

Nonrep Pk Forward Currentmax

275A
