TSD20H200CW MNG

Teknik Özellikler

Configuration

COMMON CATHODE, 2 ELEMENTS

Operating Temperature Min

-55°C

Terminal Sayısı

2

Case Connection

CATHODE

Terminal Pozisyonu

SINGLE

Jesd30 Code

R-PSSO-G2

Yayın Yılı

2017

Rep Pk Reverse Voltagemax

200V

Operating Temperature Max

150°C

Reference Standard

AEC-Q101

Terminal Formu

GULL WING

RoHS Durumu

ROHS3 Compliant

Number Of Phases

1

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Applications

EFFICIENCY

Yüzey Montaj

YES

Diode Element Material

SILICON

Nonrep Pk Forward Currentmax

150A

Diode Type

RECTIFIER DIODE

Kılıf / Paket

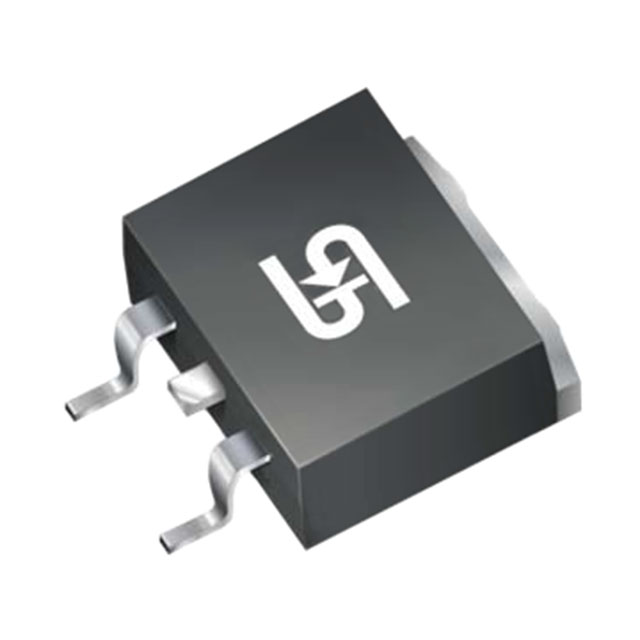

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Terminal Kaplaması

Matte Tin (Sn)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Elements

2

Parça Durumu

Discontinued

Ambalaj

Digi-Reel®

Output Currentmax

10A

JESD-609 Kodu

e3

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Forward Voltagemax

0.93V

Additional Feature

LOW POWER LOSS

Reverse Currentmax

100μA

Montaj Tipi

Surface Mount
